Abstract: Luminous flux is a core concept in lighting science and engineering, quantitatively describing the total visible light energy emitted by a light source within a unit of time. This article will delve into the definition, measurement methods, influencing factors of luminous flux, as well as its significant applications in lighting design, and elaborate on the relationship between luminous flux and other photometric parameters.
Key words: Luminous flux, lumen, photometry, lighting design, luminous efficacy
Introduction
Light, as an electromagnetic wave, is closely related to the magnitude of its energy and the visual effect it produces on the human eye. In the field of lighting, accurately assessing the brightness and lighting effect of light sources is of vital importance. Luminous flux, as a key parameter for measuring the luminous capacity of a light source, plays an indispensable role in lighting design, light source selection and performance evaluation. This article will conduct an in-depth exploration of luminous flux, clarifying its physical significance, measurement methods, and applications in lighting engineering.
Definition and units of luminous flux
Luminous Flux is defined as the total amount of visible light energy emitted by a light source in all directions within a unit of time. It reflects the subjective perception of the human eye towards the luminous capacity of a light source, rather than the total energy emitted by the light source. This is different from Radiant Flux, which measures all the electromagnetic wave energy emitted by a light source, including visible light and invisible light (such as infrared and ultraviolet rays).

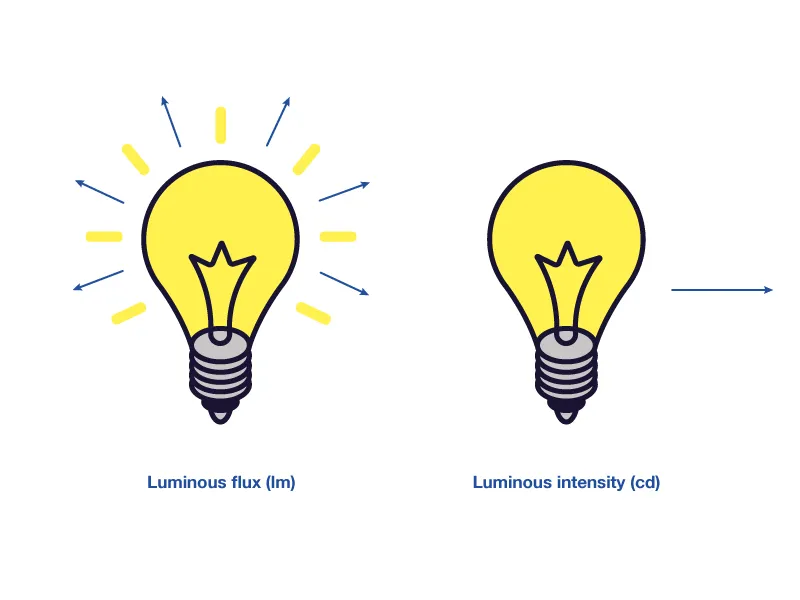

The unit of luminous flux is lumen (lm). One lumen is defined as the luminous flux emitted by a candela (cd) point light source within a unit solid Angle. Candela is the unit of Luminous Intensity, indicating the luminous intensity of a light source in a specific direction.
Measurement methods of luminous flux
The measurement of luminous flux is usually accomplished using an integrating sphere photometer. An integrating sphere is a spherical cavity with a high-reflectivity coating on its inner wall. A light source is placed inside the integrating sphere, and the light it emits is reflected multiple times within the sphere, eventually achieving a uniform distribution. By measuring the illuminance on the inner wall of the sphere and combining it with the geometric parameters of the integrating sphere, the luminous flux of the light source can be calculated. Modern photometers typically employ photoelectric sensors and computer control systems to achieve high-precision and automated measurements.
Factors Affecting Luminous Flux
The luminous flux of a light source is influenced by multiple factors:
Light source type: Different types of light sources (such as LED, fluorescent lamps, and incandescent lamps) have different luminous efficiencies, and thus their luminous fluxes also vary.
Light source power: The higher the power of the light source, the higher its luminous flux is usually, but the luminous efficacy also needs to be taken into consideration.
Spectral distribution: The spectral distribution of a light source determines its visible light composition and directly affects the value of luminous flux.
Temperature: The luminous flux of certain light sources varies with temperature.
Usage time: The luminous flux of some light sources will decline as the usage time increases.
The relationship between luminous flux and other photometric parameters
Luminous flux is closely related to other photometric parameters, such as:
Luminous Intensity: Luminous flux is the integral of luminous intensity over the entire space.
Illuminance: Illuminance is the amount of luminous flux received per unit area.
Luminance: Luminance is the intensity of light on the luminous surface per unit projected area.
Luminous Efficacy: Luminous efficacy refers to the luminous flux produced per watt of electrical power, with the unit of lm/W.
Application of Luminous Flux in Lighting Design
In lighting design, luminous flux is a key parameter for determining the lighting scheme. Designers calculate the required luminous flux based on the size of the space, illuminance requirements, and the luminous efficacy of the light source, thereby selecting appropriate lamps and light sources to ensure that the lighting needs are met while taking into account energy efficiency and economy.
Conclusion
Luminous flux is a key parameter in lighting science, accurately describing the total amount of visible light energy emitted by a light source. Understanding the definition, measurement methods and influencing factors of luminous flux is of vital importance for lighting design, light source selection and performance evaluation. With the continuous development of new light sources such as LED, the precise measurement and control of luminous flux will become increasingly important to achieve more efficient, energy-saving and environmentally friendly lighting solutions.
