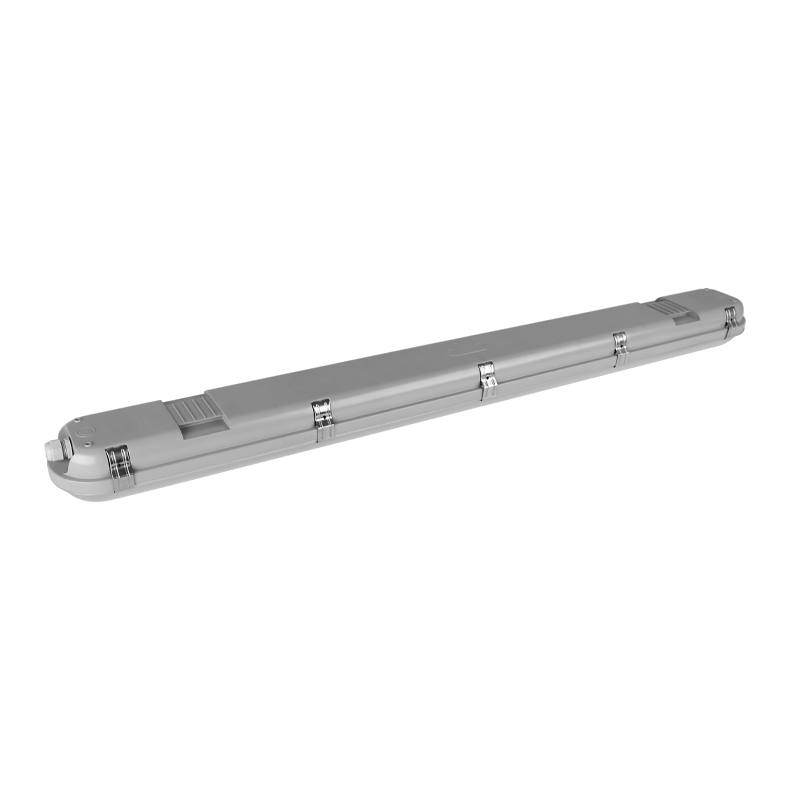

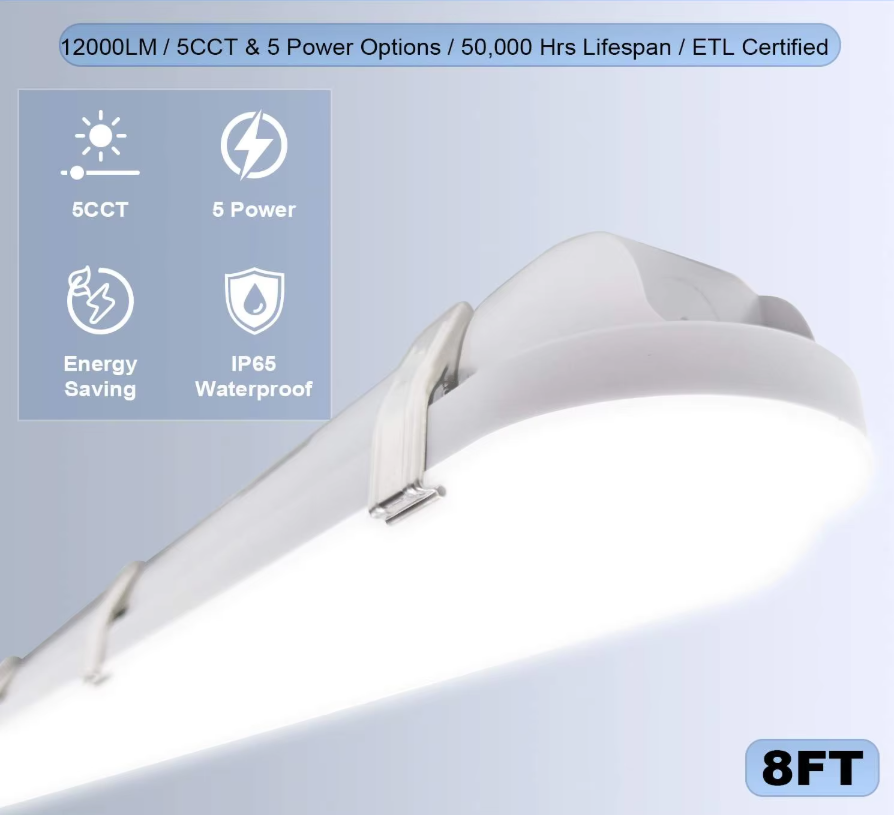

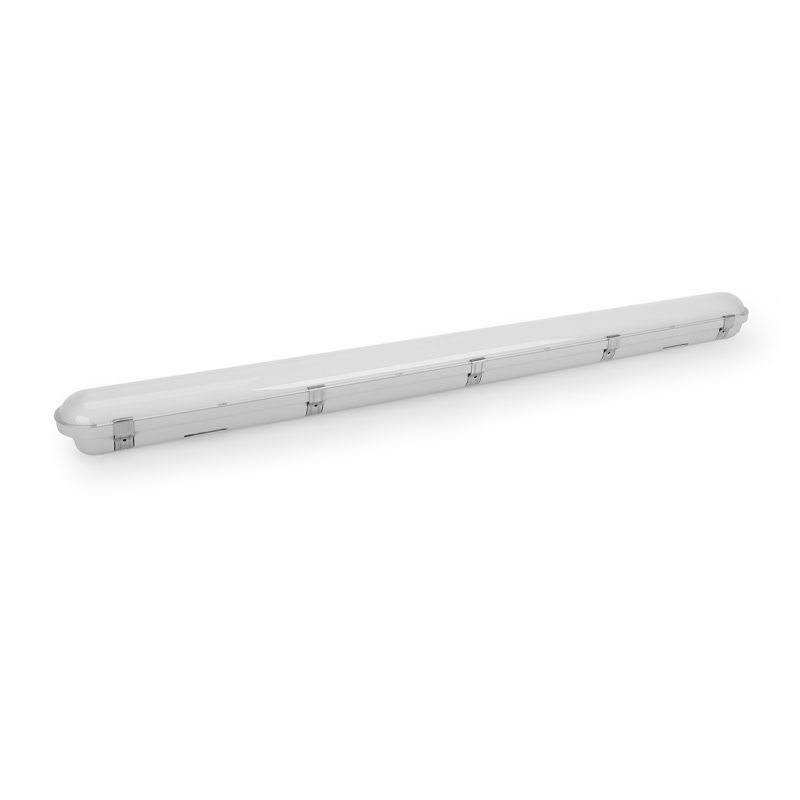

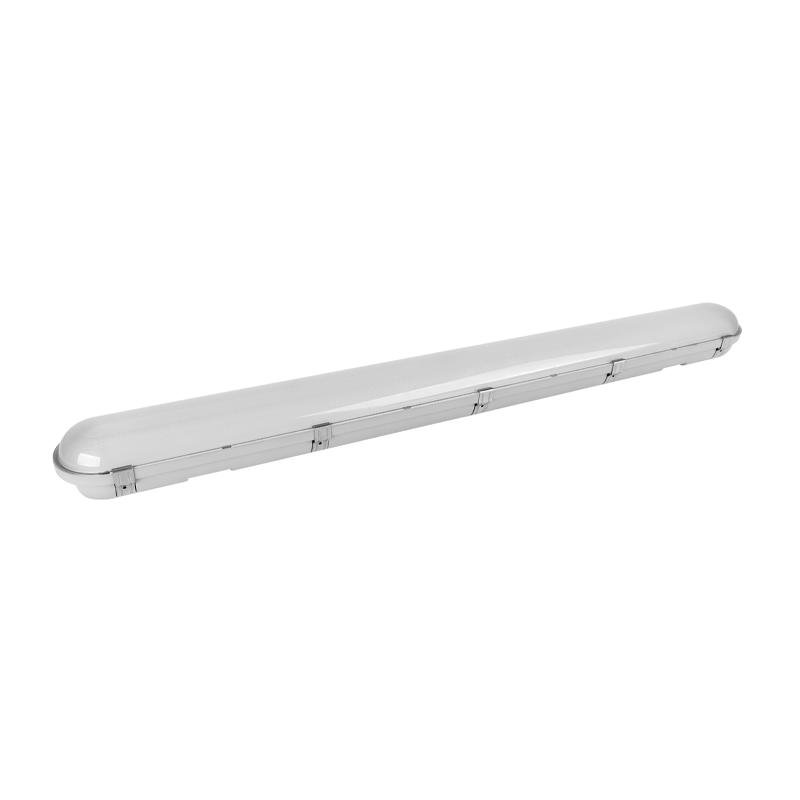

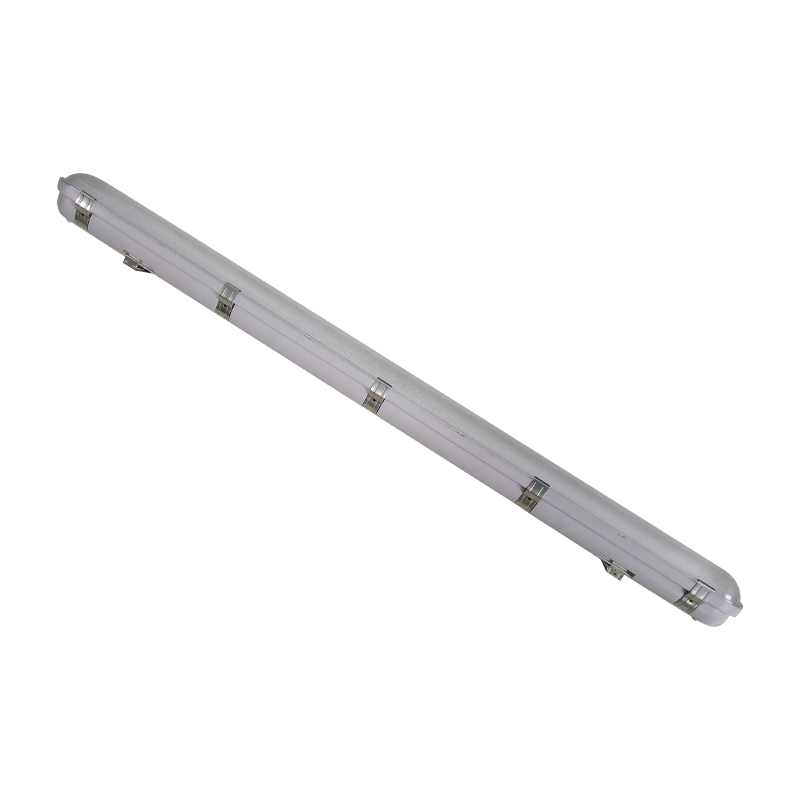

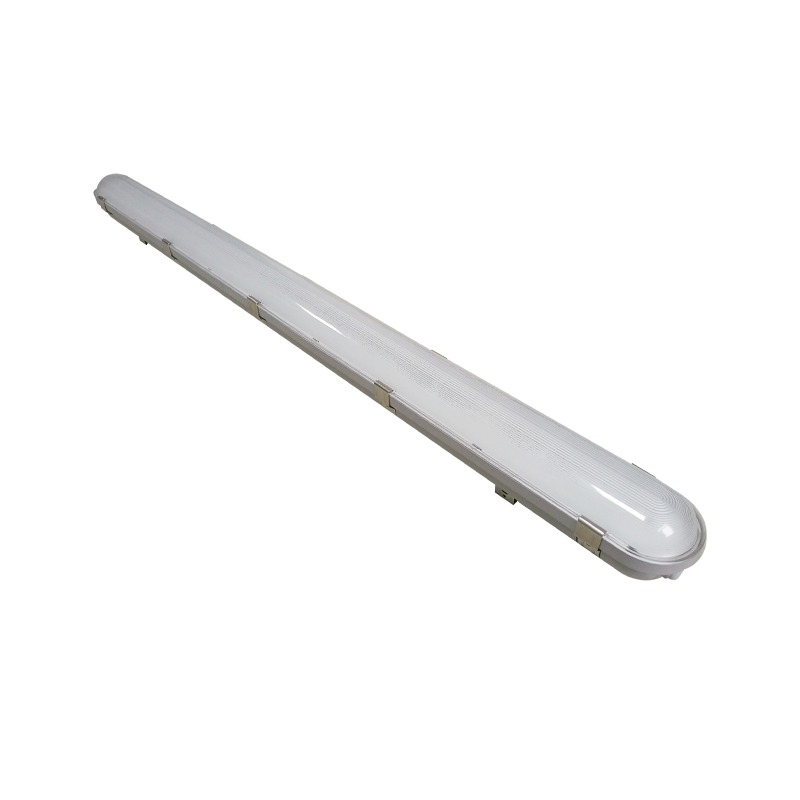

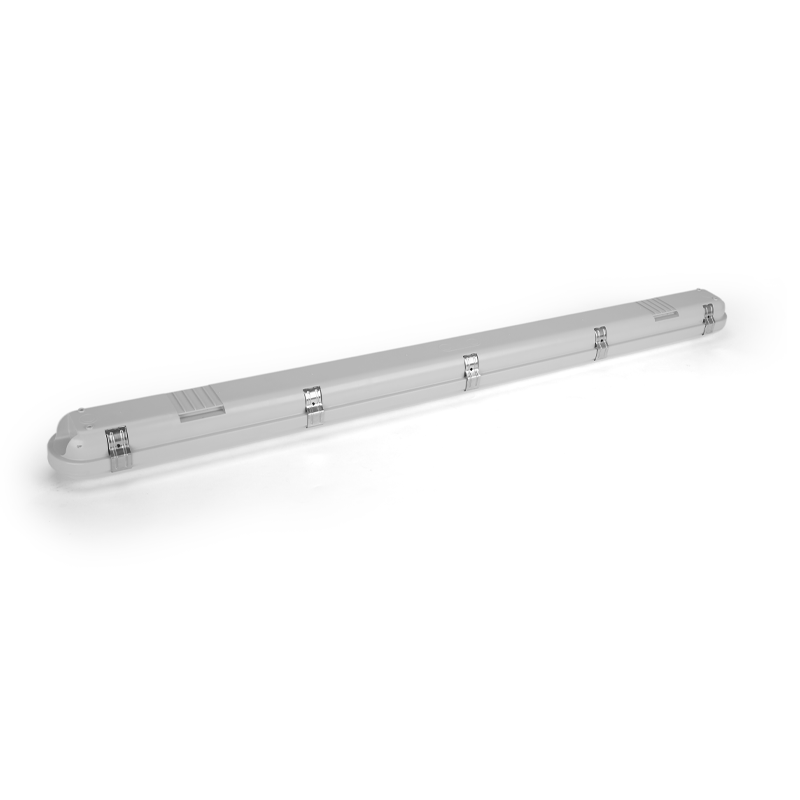

IP65 Weatherproof light

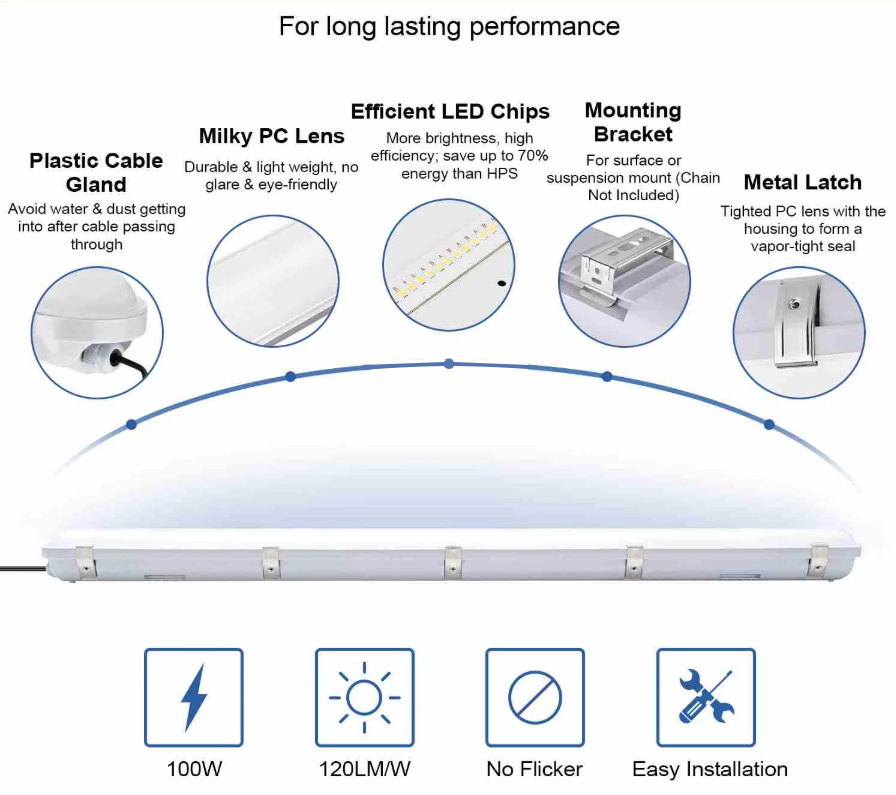

Key Features of the IP65 Weatherproof Light

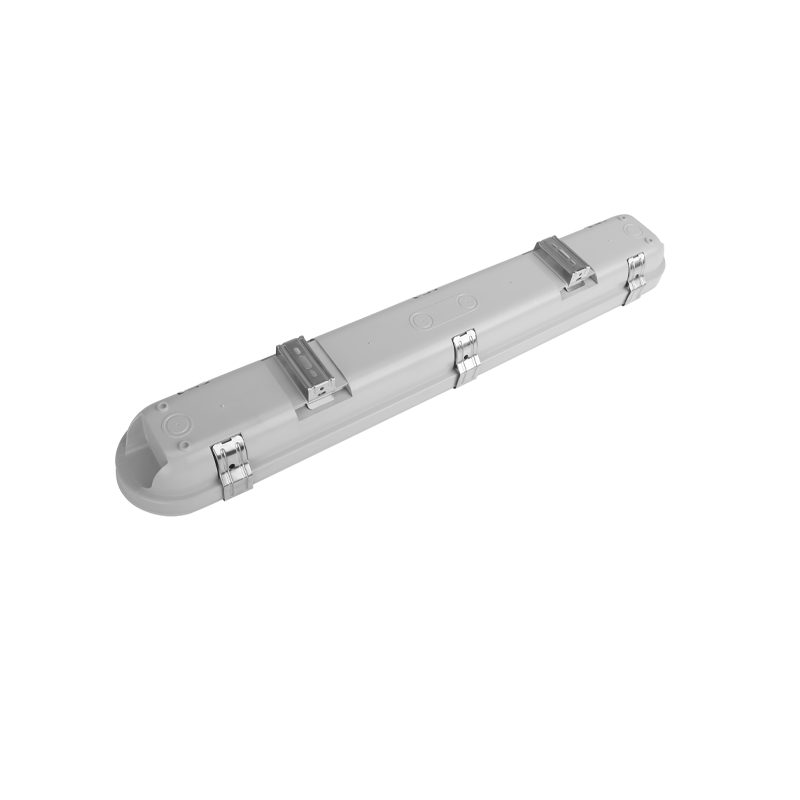

🔧 Integrated Cover-Mount Design
The IP65 weatherproof light features an integrated lamp cover and mounting plate design that facilitates easier wiring and saves over 50% of installation time. Pre-drilled screw holes on the earthquake-resistant brackets ensure secure mounting in seismic zones, reducing labor costs and project timelines.

⚡ High-Efficiency SMD2835 LEDs
Each IP65 weatherproof light is equipped with premium SMD2835 LED chips delivering 130 lm/W luminous efficacy. With CRI≥80 (Ra80), these LEDs provide accurate color rendering for industrial inspection, retail display, and workspace illumination where color accuracy matters.

🌡️ Separated Light Source & Driver
The innovative separated design of the IP65 weatherproof light positions the light source and driver independently, enabling efficient heat dissipation and preventing thermal buildup. This extends LED lifespan to 50,000 hours and maintains consistent luminous output throughout the service period.

💦 IP65 Waterproof Rating
The IP65 weatherproof light carries an IP65 ingress protection rating, providing complete protection against dust ingress and low-pressure water jets from any direction. This makes it ideal for car washes, food processing facilities, outdoor walkways, and other environments where moisture resistance is critical.

🌡️ Wide Operating Temperature (-40°C to +45°C)
Engineered for extreme environments, the IP65 weatherproof light operates reliably from -40°C to +45°C. Whether installed in freezer warehouses, unheated parking garages, or hot industrial plants, this fixture maintains stable performance across the full temperature spectrum.

🔩 Dual Installation Options
The IP65 weatherproof light supports both ceiling bracket mounting and suspension rope installation. The pre-drilled earthquake-resistant brackets accommodate various ceiling types, while the suspension option provides flexibility for high-ceiling applications requiring adjustable hanging height.

Application Scenarios for the IP65 Weatherproof Light

🏭 Industrial Plants & Manufacturing Facilities
Primary application — provides reliable illumination for production lines, assembly areas, and quality control stations. The IP65 weatherproof light performs in harsh industrial environments with dust, moisture, and temperature fluctuations, maintaining 130 lm/W efficiency for reduced energy costs.

🅿️ Parking Garages & Covered Parking Areas
IP65 rating ensures reliable operation in outdoor covered parking structures where rain, car wash runoff, and condensation are common. The wide operating temperature range handles unheated garage environments, while the integrated design simplifies large-scale installations.

❄️ Cold Storage & Freezer Warehouses
Reliable performance at -40°C makes the IP65 weatherproof light ideal for cold storage facilities, freezer rooms, and refrigerated warehouses. Unlike fluorescent fixtures that struggle in low temperatures, this LED weatherproof light starts instantly and maintains full brightness.

🛒 Supermarkets & Food Processing Plants
The IP65 weatherproof light is suitable for food processing areas, walk-in refrigerators, and supermarket back-of-house areas where washdown cleaning is required. The IP65 rating resists water jets during cleaning, while the high CRI (Ra80) ensures accurate color rendering for food inspection.

🏫 Schools, Hospitals & Public Facilities
Flicker-free, uniform illumination creates comfortable environments for educational activities, medical examinations, and public gatherings. The 50,000-hour lifespan reduces maintenance requirements and replacement costs in facilities where access for relamping is difficult or disruptive.

⛽ Gas Stations & Outdoor Canopies
Durable IP65-rated construction provides weather-resistant illumination for fuel dispensers, canopy areas, and perimeter lighting. The robust housing withstands outdoor conditions while delivering consistent high lumen output for safety and visibility.

Technical Specifications

Model Number: SPL-VPL
Product Type: IP-Rated Fixture
Luminous Efficacy: 130 lm/W
Warranty Period: 5 Years
Country of Origin: Made in China, Guangdong
Input Voltage: AC 120-277V
Color Rendering Index (CRI/Ra): Ra80
Dimmable: Yes
Lifespan: 50,000 hours
Product Weight: 2.5 kg
IP Rating: IP65
Operating Temperature: -40°C to +45°C
Corrosion Resistance: Slight corrosion resistance

Available Models:

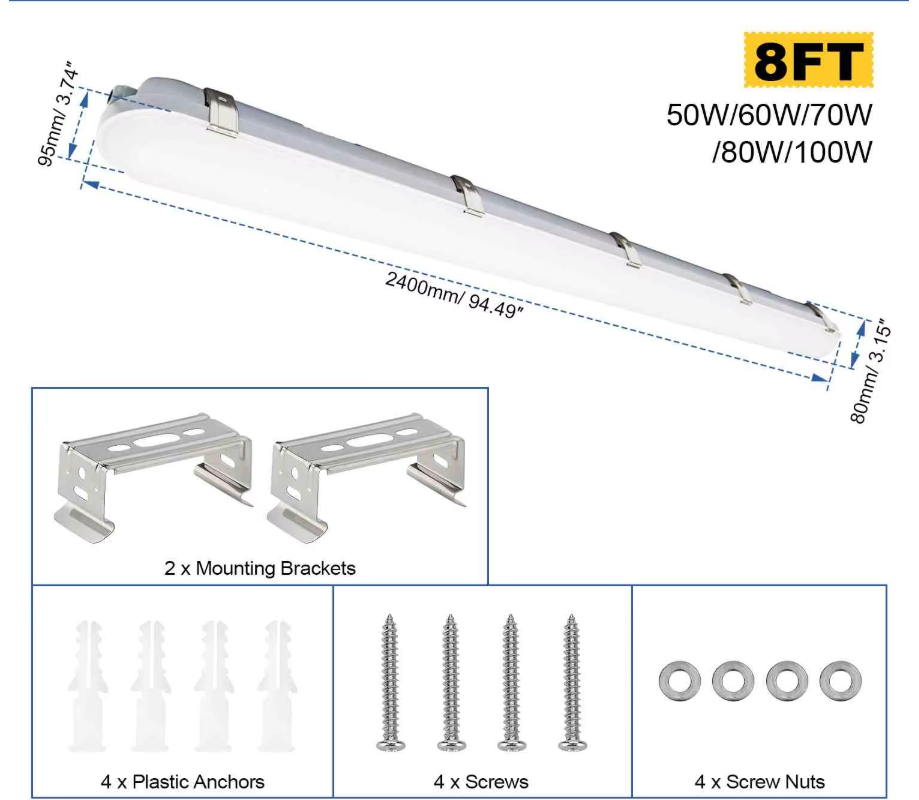

• 2FT: 12W / 15W / 18W / 22W / 25W
• 4FT: 25W / 30W / 35W / 40W / 50W
• 8FT: 50W / 60W / 70W / 80W / 100W

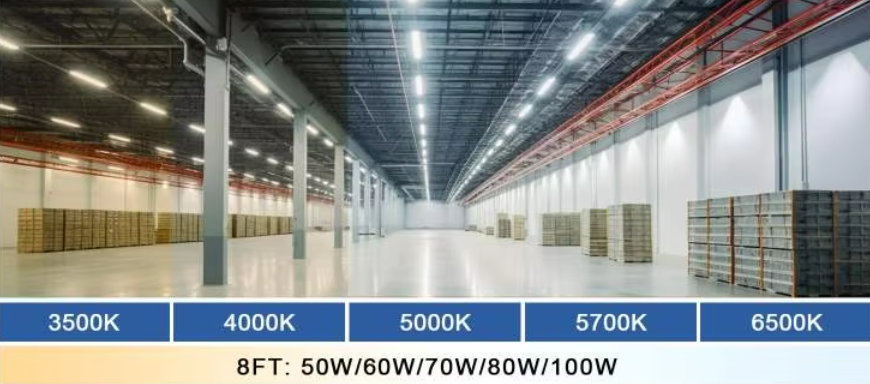

CCT (Color Temperature): 3500K / 4000K / 5000K / 5700K / 6500K (selectable)
Light Source: SMD2835
Luminous Flux:
• 2FT: 3250 lm (25W)
• 4FT: 6500 lm (50W)
• 8FT: 13000 lm (100W)

Installation Types: Ceiling bracket / Suspension rope
Accessories: Earthquake-resistant brackets (pre-drilled)

Installation Guidelines

The IP65 weatherproof light is designed for ceiling or suspended installation in industrial and commercial environments. Follow these key guidelines:

1. Verify the mounting surface can support the fixture weight (2.5 kg) plus any additional load from suspension hardware.

2. For ceiling bracket mounting, use the pre-drilled holes on the earthquake-resistant brackets. Ensure screws penetrate at least 25mm into solid ceiling material.

3. For suspension rope installation, use rated suspension cables appropriate for the fixture weight and local building codes.

4. Connect the electrical wiring according to local codes: Live (Brown), Neutral (Blue), Ground (Green/Yellow). The integrated cover-mount design simplifies wiring access.

5. Verify input voltage (AC 120-277V) matches your supply before connection. The wide voltage range accommodates most commercial and industrial electrical systems.

6. For outdoor installations, ensure all gaskets and seals are properly seated to maintain IP65 rating. Do not operate with damaged seals.

7. After installation, test the fixture and verify proper operation across the full dimming range (if equipped).

Frequently Asked Questions

❓ What does IP65 rating mean?

IP65 stands for Ingress Protection rating 65. The first digit (6) means completely dust-tight—no ingress of dust. The second digit (5) means protected against low-pressure water jets from any direction. This makes the IP65 weatherproof light suitable for dusty environments and areas where water spray or cleaning is required, but not for continuous water immersion.

❓ Can this weatherproof light be used in cold storage freezers?

Yes, the IP65 weatherproof light is designed for extreme temperature environments with an operating range of -40°C to +45°C. It performs reliably in freezer warehouses, cold storage facilities, and refrigerated rooms where standard fluorescent fixtures would fail to start or maintain full brightness.

❓ What is the difference between the 2FT, 4FT, and 8FT models?

The IP65 weatherproof light comes in three length options to match different mounting heights and illumination requirements. The 2FT model (12W-25W) suits low-ceiling areas (2.5-4 meters), the 4FT model (25W-50W) for medium heights (4-6 meters), and the 8FT model (50W-100W) for high-ceiling industrial spaces (6-10 meters).

❓ Is the color temperature adjustable?

Yes, the IP65 weatherproof light offers selectable CCT options: 3500K (neutral white), 4000K (cool white), 5000K (daylight), 5700K (bright daylight), and 6500K (cool daylight). Choose warmer temperatures (3500K-4000K) for comfort-oriented spaces and cooler temperatures (5000K-6500K) for task-oriented industrial environments requiring maximum visibility.

❓ What warranty does SPACELUX provide?

The IP65 weatherproof light comes with a 5-year warranty covering manufacturing defects and premature LED failure. Our warranty includes replacement units or repair service, with technical support available throughout the warranty period. SPACELUX has maintained 99.2% customer satisfaction over 16+ years of LED lighting manufacturing.

Why Choose SPACELUX for Your IP65 Weatherproof Light

🏭 Factory-Direct Manufacturing

As a direct manufacturer with 16+ years in LED lighting production, SPACELUX offers the IP65 weatherproof light at factory-direct prices—eliminating distributor markups while maintaining strict quality control over every unit shipped from our Guangdong, China facility.

✅ Certified Quality Assurance

Every IP65 weatherproof light undergoes rigorous testing against IP65 ingress protection standards, photometric measurement, and electrical safety verification. Our quality control process includes 100% aging test, thermal cycling, and ingress protection verification to ensure consistent performance.

🔧 Flexible OEM/ODM Services

Need custom branding, different color temperature configurations, or specialized dimming drivers? Our engineering team accommodates volume orders with flexible modifications—from custom labeling to tailored specifications—to match your project requirements.

🌍 Global Shipping Experience

SPACELUX LED weatherproof lights are installed in industrial facilities, warehouses, and commercial venues across 50+ countries. We handle customs documentation, safe packaging, and reliable international logistics for seamless delivery to your project site.

🎯 Responsive Technical Support

From pre-sales lighting design recommendations to post-installation maintenance guidance, our technical support team provides comprehensive assistance. IES files, photometric calculations, and application engineering support are included with every order at no additional cost.

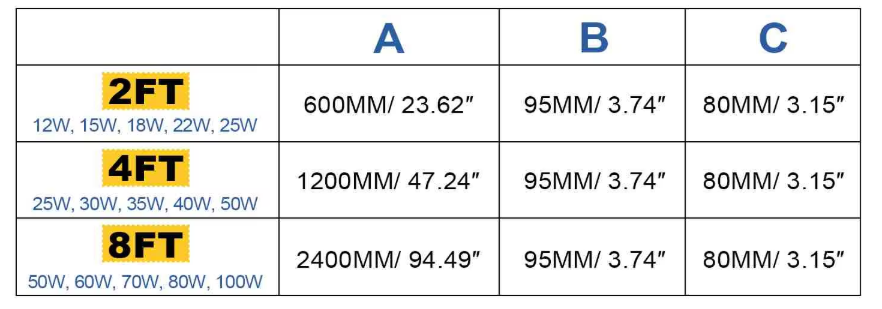

IP65 Weatherproof Light Specification
