High quality LED Emergency Exit Sign Ceiling Mounting

Emergency Exit Sign Ceiling Mounting SPL-SET4

Engineered with premium quality and a sleek design, the LED Emergency Exit Sign offers both maintained and non-maintained operation modes. It delivers a normal lumen output of 110 lm and an emergency output of 50 lm, ensuring clear visibility in any situation. Powered by a high-performance LiFePO₄ battery, it provides up to 180 minutes of emergency duration. Available in white and black finishes, this exit sign seamlessly blends with modern interiors. Fully compliant with IEC 62034 and EN 60598-2-22 standards, it guarantees reliable safety and performance. The product also comes with a 5-year warranty for long-term peace of mind.

LED Emergency Exit Sign Ceiling Mounting SPL-SET4 Key Features and Benefits

·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

LED Emergency Exit Sign Ceiling Mounting Description

As a leading provider of professional LED lighting solutions in China, SPACELUX is committed to delivering premium products and first-class service to our global clients. Our ceiling-mounted LED emergency exit sign is specifically designed for indoor applications such as shopping malls and commercial centers.

In the event of a power outage, this exit sign provides reliable emergency illumination with a lumen output that lasts for up to 3 hours, ensuring safe and visible egress routes. Ideal for wholesalers, distributors, and bulk purchasers, this product is trusted by partners worldwide.

Featuring a versatile ceiling mount design, it can be easily installed across a variety of settings. Manufactured by a dedicated and reliable supplier, this emergency exit sign meets the demands of dealers, distributors, and volume buyers seeking quality and performance.


LED Emergency Exit Sign Ceiling Mounting Specification

Ordering guide
·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

Model No.	Rated input	emergency power	Test Mode	Lumen output Normal/EM mode	Battery Type	Size	Installations
SET4-AO1-W/B	AC220-240V 50/60Hz 3.5W max	0.4w	Manual test	110lm/50lm	LiFePO4	327x245x153mm	Ceiling Mounted Wall Mounted
SET4-A02-W/B	AC220-240V 50/60Hz 3.5W max	0.4w	Manual test/ Self-test	110lm/50lm	LiFePO4	327x245x153mm	Ceiling Mounted Wall Mounted

Product Name	Model No.	Picture	Carton size/Qty
Accessory for SET4	Accessory for SET4-H1-W/B	Hoisting rope for suspending	360x190x160mm/15pcs
	Accessory for SET4-E1-W/B	Embedded parts for recessed-mounted	390x330x140mm/8pcs
	Accessory for SET4-B1-W/B	Bracket for flag flag-mounted	380x150x170mm/24pcs
	Accessory for SET4-T1-W/B	Track head for track-mounted	370x240x230mm/30pcs

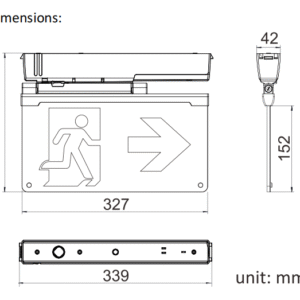

Dimensions

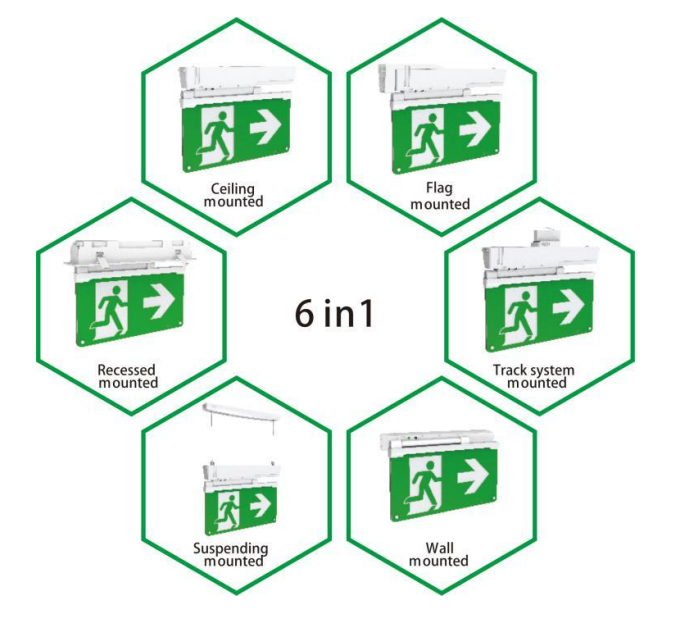

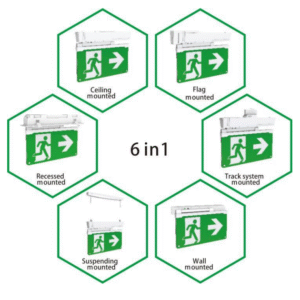

6-in-1 Installations

Applications

✔ Office buildings & retail spaces
✔ Hotels, hospitals & educational facilities
✔ Public venues & transportation hubs
✔ Industrial complexes (where basic impact/dust protection is sufficient)
