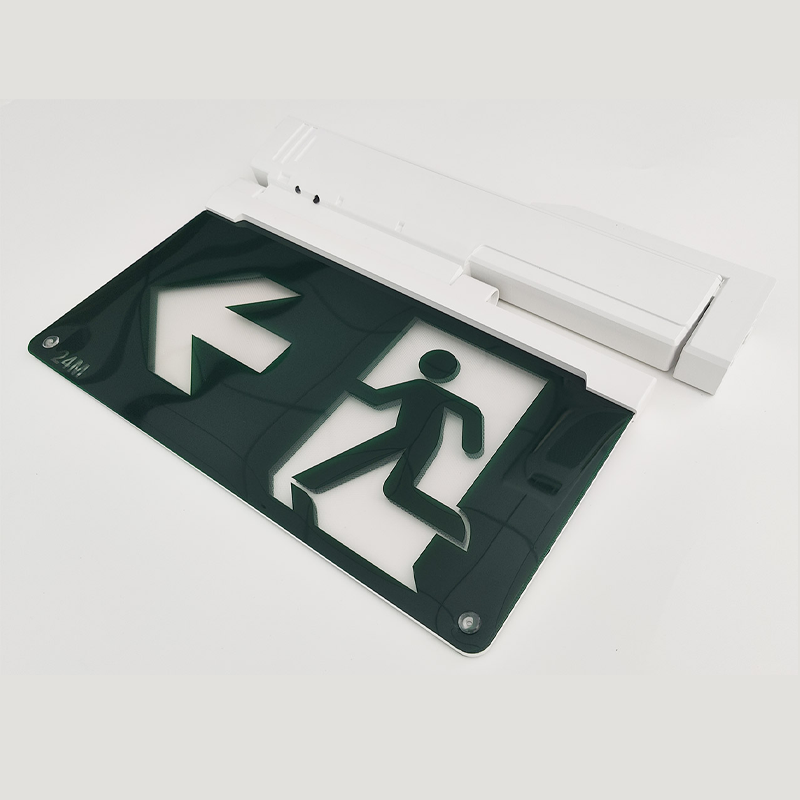

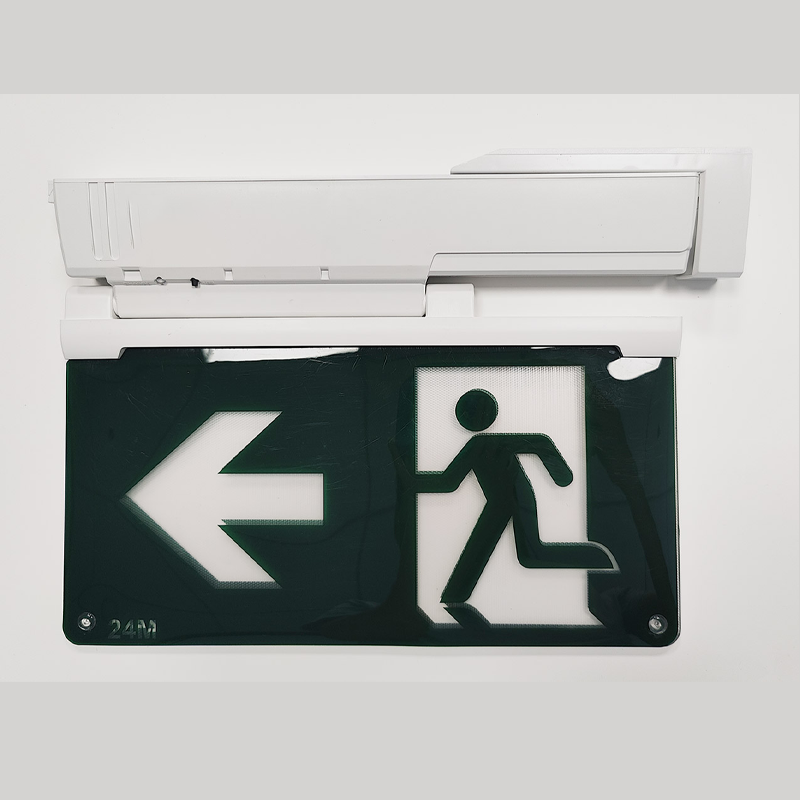

Emergency Exit Sign Flag Mounting SPL-SET4

LED Emergency Exit Sign with Flag Mounting, designed and manufactured by a professional emergency lighting manufacturer, offers both maintained and non-maintained modes for flexible building compliance. As a reliable LED emergency exit sign manufacturer and factory, it delivers 110 lm in normal mode and 50 lm in emergency mode, ensuring clear evacuation guidance.

Produced in a certified emergency lighting factory with strict quality control, this flag-type exit sign is powered by a LiFePO₄ battery, providing up to 180 minutes of emergency backup. The flag-style design allows versatile installation while maintaining high visibility, making it ideal for offices, commercial buildings, and industrial environments.

Fully compliant with IEC 62034 and EN 60598-2-22 standards, and backed by a 5-year warranty, this product demonstrates reliability and consistent performance from an experienced manufacturer factory, giving distributors and project buyers a trusted solution for emergency signage applications.



LED Emergency Exit Sign Flag Mounting SPL-SET4 Key Features and Benefits

·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

LED Emergency Exit Sign Flag Mounting Description

SPACELUX, a leading Chinese LED lighting provider, delivers high-performance emergency exit signs with flag mounting for clear visibility in indoor commercial spaces.

During power outages, it ensures reliable illumination for up to 3 hours, guiding safe egress. Trusted by global distributors and volume buyers, the product offers easy installation and versatile application across various environments.

Built for durability and compliance, it meets the needs of professional partners seeking dependable lighting solutions.

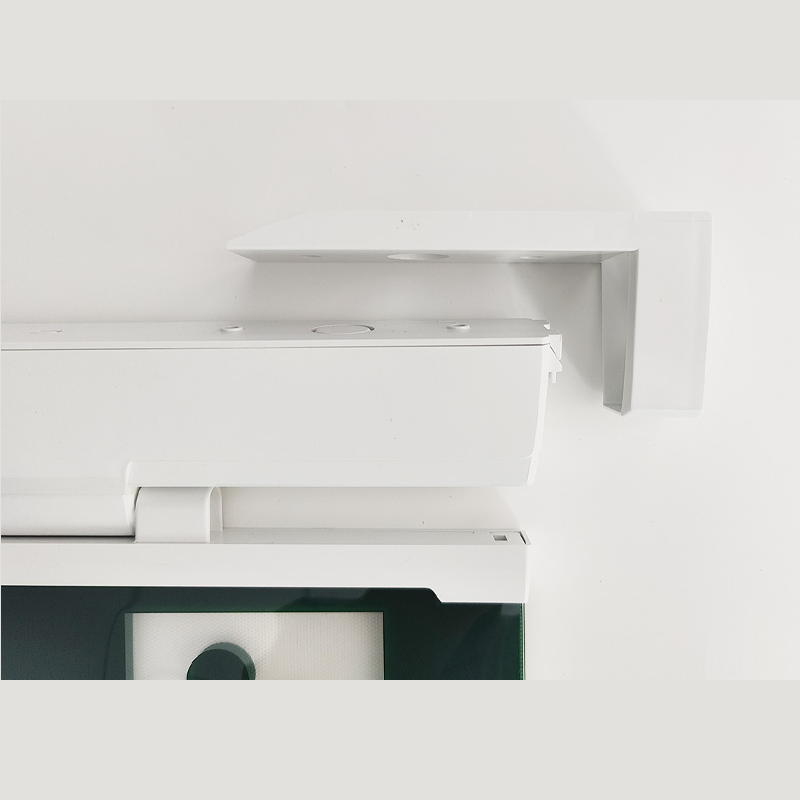

emergency exit sign



LED Emergency Exit Sign Flag Mounting  Specification

Ordering guide
·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

Model No. Rated input emergency power Test Mode Lumen output
Normal/EM mode
Battery Type Size Installations
SET4-AO1-W/B AC220-240V 50/60Hz 3.5W max 0.4w Manual test 110lm/50lm LiFePO4 327x245x153mm Flag Mounted
SET4-A02-W/B AC220-240V 50/60Hz 3.5W max 0.4w Manual test/ Self-test 110lm/50lm LiFePO4 327x245x153mm Flag Mounted
Product Name Model No. Picture Carton size/Qty
Accessory for SET4 Accessory for SET4-H1-W/B Hoisting rope for suspending 360x190x160mm/15pcs
Accessory for SET4-E1-W/B Embedded parts for recessed-mounted 390x330x140mm/8pcs

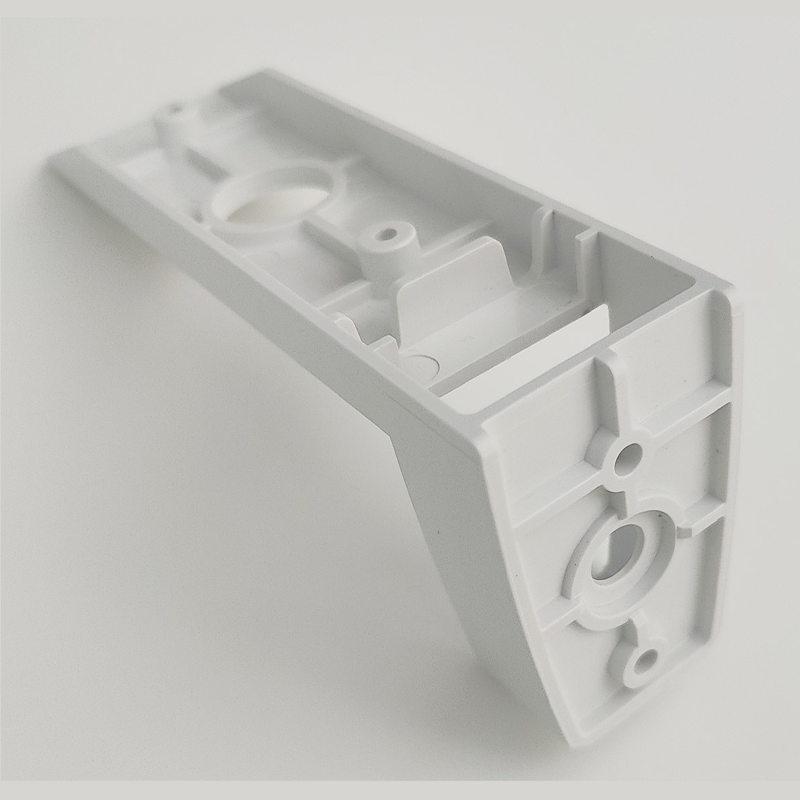

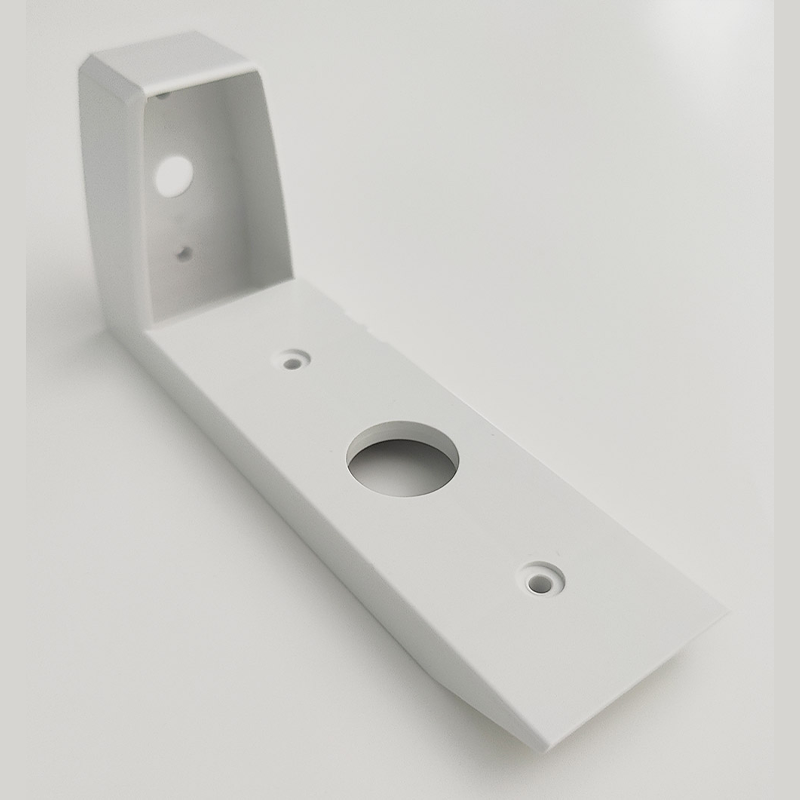

Accessory for SET4-B1-W/B Bracket for flag-mounted 380x150x170mm/24pcs
Accessory for SET4-T1-W/B Track head for track-mounted 370x240x230mm/30pcs

Dimensions

led emergency exit sign ceiling mounting



6-in-1 Installations

led emergency exit sign



Applications

✔ Office buildings
✔ Public Assembly Building
✔ Educational Institutions
✔ Healthcare Facilities
✔ Public Assembly Building
✔ Educational Institutions
✔Healthcare Facilities
✔ Transportation Hubs
✔ Government Buildings
✔ Hotel and Hospitality
