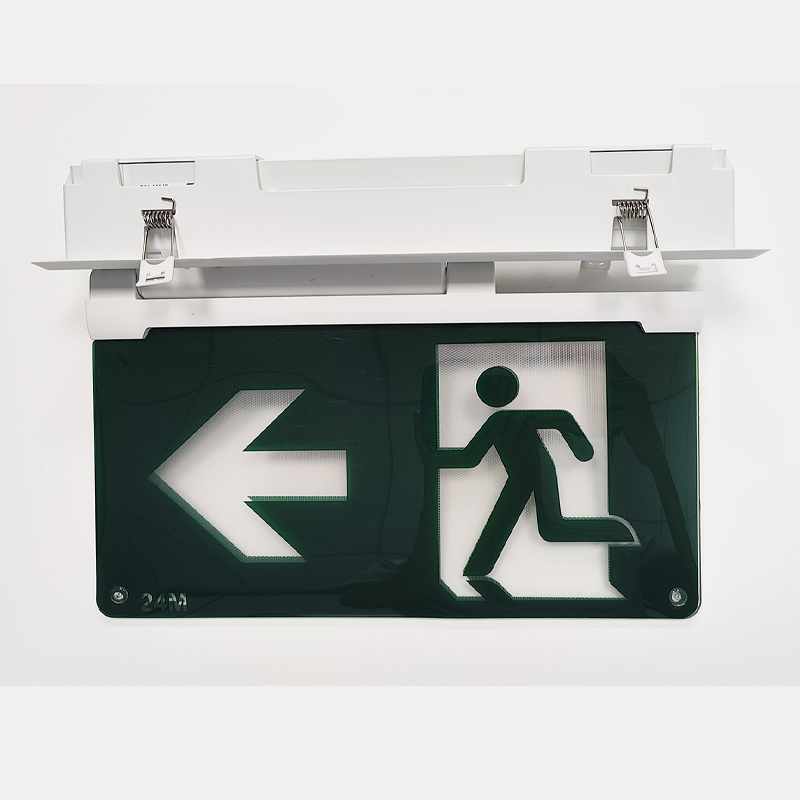

Emergency Exit Sign Recessed Mounting SPL-SET4 - Image 2

LED Emergency Lighting

Emergency Exit Sign Recessed Mounting SPL-SET4

LED Emergency Exit Sign, designed and manufactured by a professional emergency lighting manufacturer, supports both maintained and non-maintained modes, making it suitable for a variety of commercial, public, and industrial building requirements. As a reliable LED emergency exit sign manufacturer and factory, it delivers 110 lm under normal operation and 50 lm in emergency mode, ensuring clear guidance during evacuation.

Produced in a certified emergency lighting factory with strict quality control, this exit sign is powered by a long-life LiFePO₄ battery, providing up to 180 minutes of reliable emergency illumination during a power failure. Featuring a recessed mounting design, the sign installs flush with the ceiling for a clean, unobtrusive appearance, blending seamlessly into modern interior spaces.

Fully compliant with IEC 62034 and EN 60598-2-22 standards, this product guarantees high safety and consistent performance. Backed by a 5-year warranty and the expertise of our manufacturer’s factory, it offers distributors and project buyers a trusted solution for commercial, public, and industrial applications.

LED Emergency Exit Sign Recessed Mounting SPL-SET4 Key Features and Benefits

·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

Category: LED Emergency Lighting

Get A Quote

Description

LED Emergency Exit Sign Recessed Mounting Description

As a leading provider of professional LED lighting solutions in China, SPACELUX is committed to delivering premium products and first-class service to our global clients. Our ceiling-mounted LED emergency exit sign is specifically designed for indoor applications such as shopping malls and commercial centers.

In the event of a power outage, this exit sign provides reliable emergency illumination with a lumen output that lasts for up to 3 hours, ensuring safe and visible egress routes. Ideal for wholesalers, distributors, and bulk purchasers, this product is trusted by partners worldwide.

Featuring a versatile ceiling mount design, it can be easily installed across a variety of settings. Manufactured by a dedicated and reliable supplier, this emergency exit sign meets the demands of dealers, distributors, and volume buyers seeking quality and performance.


LED Emergency Exit Sign Recessed Mounting Specification

Ordering guide
·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC

Model No.	Rated input	emergency power	Test Mode	Lumen output Normal/EM mode	Battery Type	Size	Installations
SET4-AO1-W/B	AC220-240V 50/60Hz 3.5W max	0.4w	Manual test	110lm/50lm	LiFePO4	327x245x153mm	Recessed Mounted
SET4-A02-W/B	AC220-240V 50/60Hz 3.5W max	0.4w	Manual test/ Self-test	110lm/50lm	LiFePO4	327x245x153mm	Recessed Mounted

Product Name	Model No.	Picture	Carton size/Qty
Accessory for SET4	Accessory for SET4-H1-W/B	Hoisting rope for suspending	360x190x160mm/15pcs
	Accessory for SET4-E1-W/B	Embedded parts for recessed-mounted	390x330x140mm/8pcs
	Accessory for SET4-B1-W/B	Bracket for flag-mounted	380x150x170mm/24pcs
	Accessory for SET4-T1-W/B	Track head for track-mounted	370x240x230mm/30pcs

Dimensions

6-in-1 Installations

Applications

✔ Office buildings
✔ Public Assembly Building
✔ Educational Institutions
✔ Healthcare Facilities
✔ Public Assembly Building
✔ Educational Institutions
✔Healthcare Facilities
✔ Transportation Hubs
✔ Government Buildings
✔ Hotel and Hospitality
