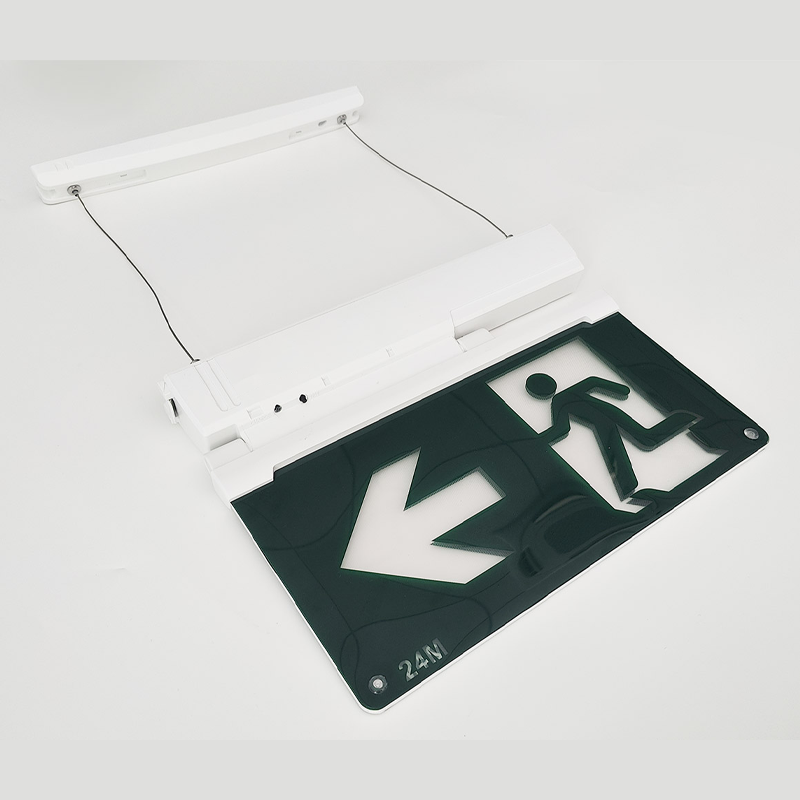

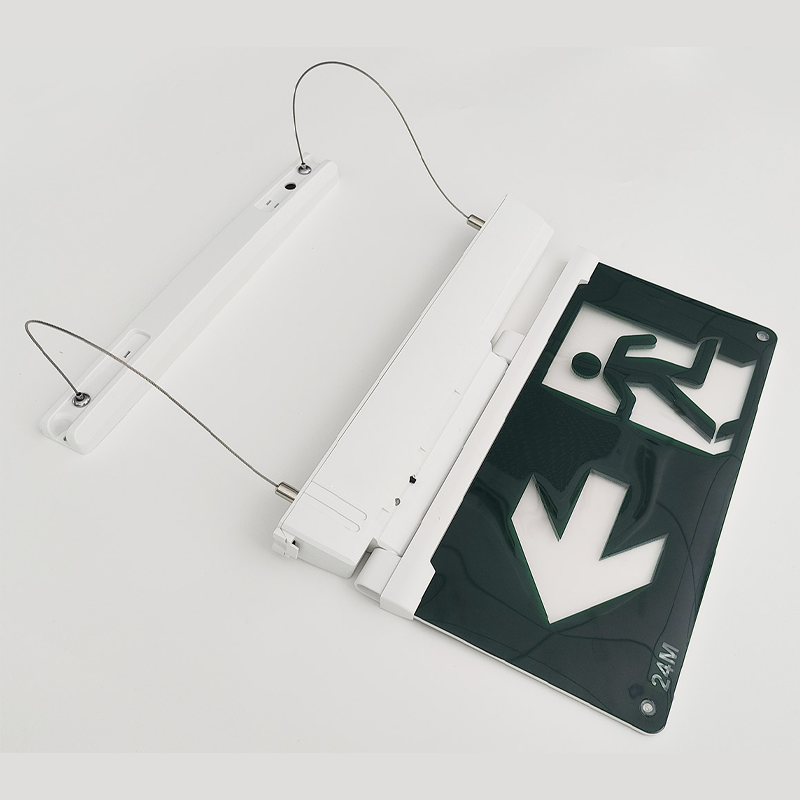

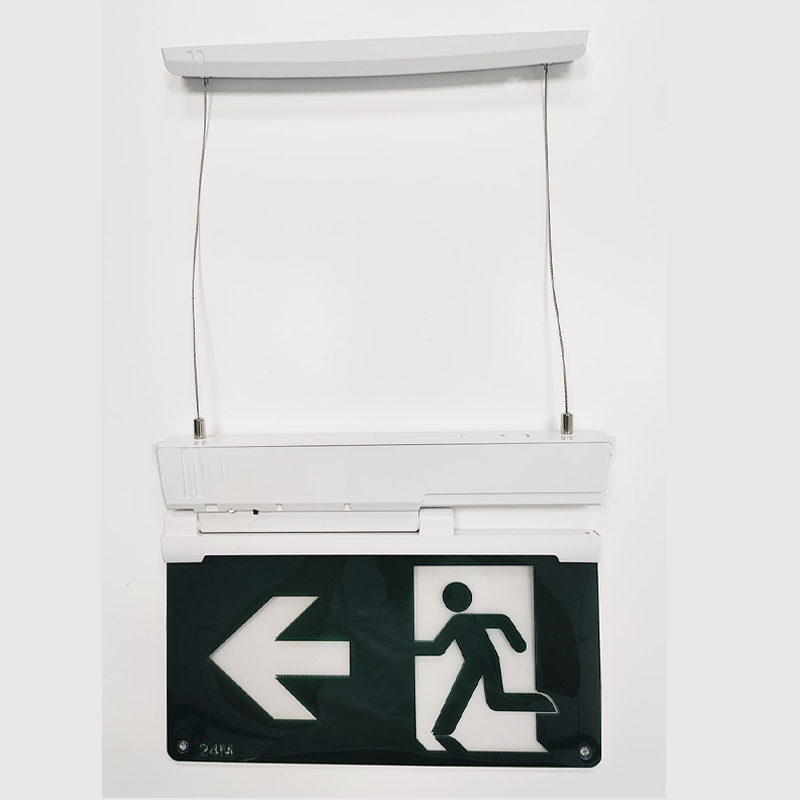

LED Emergency Exit Sign Suspending Mounting Description
SPACELUX LED Emergency Exit Sign with suspending mounting offers reliable safety illumination for up to 3 hours during power outages. Designed for commercial spaces like malls and centers, its suspended installation provides flexible positioning and clear visibility. Trusted by global distributors and volume buyers, this product delivers quality performance for modern indoor applications.

LED Emergency Exit Sign Suspending Mounting Specification
Ordering guide
·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC
| Model No. | Rated input | emergency power | Test Mode | Lumen output Normal/EM mode |
Battery Type | Size | Installations |
| SET4-AO1-W/B | AC220-240V 50/60Hz 3.5W max | 0.4w | Manual test | 110lm/50lm | LiFePO4 | 327x245x153mm | Suspending Mounted |
| SET4-A02-W/B | AC220-240V 50/60Hz 3.5W max | 0.4w | Manual test/ Self-test | 110lm/50lm | LiFePO4 | 327x245x153mm | Suspending Mounted |
| Product Name | Model No. | Picture | Carton size/Qty |

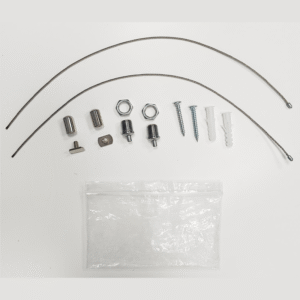

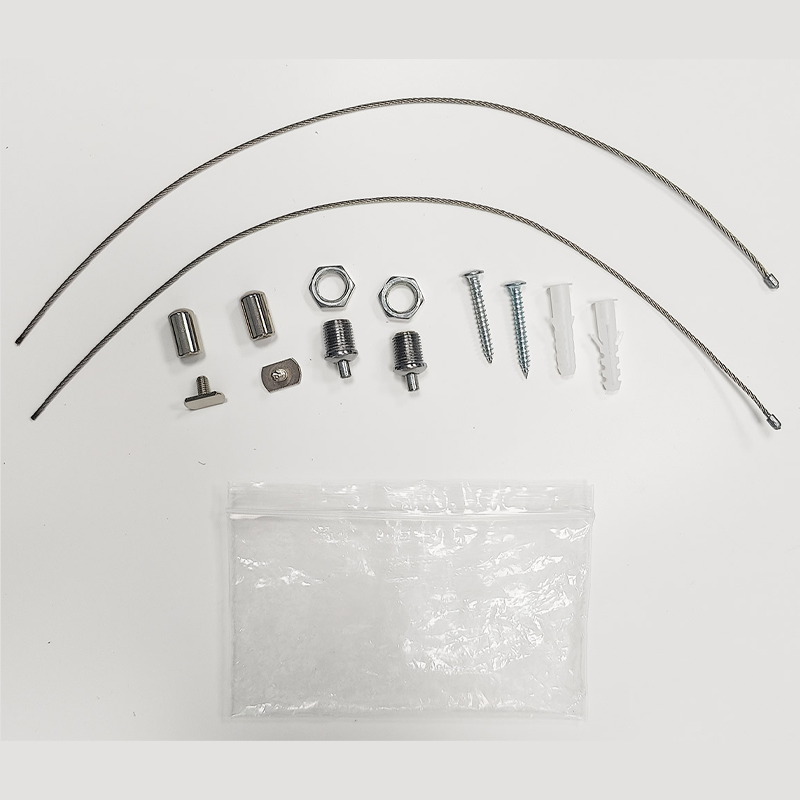

| Accessory for SET4 | Accessory for SET4-H1-W/B | Hoisting rope for suspending | 360x190x160mm/15pcs |
| Accessory for SET4-E1-W/B | Embedded parts for recessed-mounted | 390x330x140mm/8pcs | |
| Accessory for SET4-B1-W/B | Bracket for flag-mounted | 380x150x170mm/24pcs | |
| Accessory for SET4-T1-W/B | Track head for track-mounted | 370x240x230mm/30pcs |
Dimensions

6-in-1 Installations

Applications
✔ Office buildings
✔ Public Assembly Building
✔ Educational Institutions
✔ Healthcare Facilities
✔ Public Assembly Building
✔ Educational Institutions
✔Healthcare Facilities
✔ Transportation Hubs
✔ Government Buildings
✔ Hotel and Hospitality
