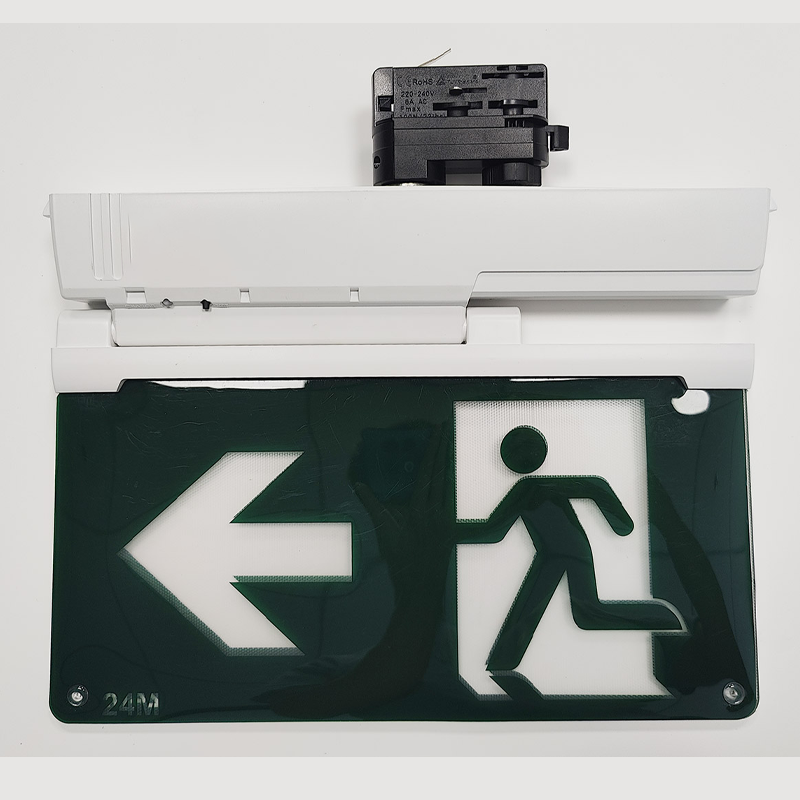

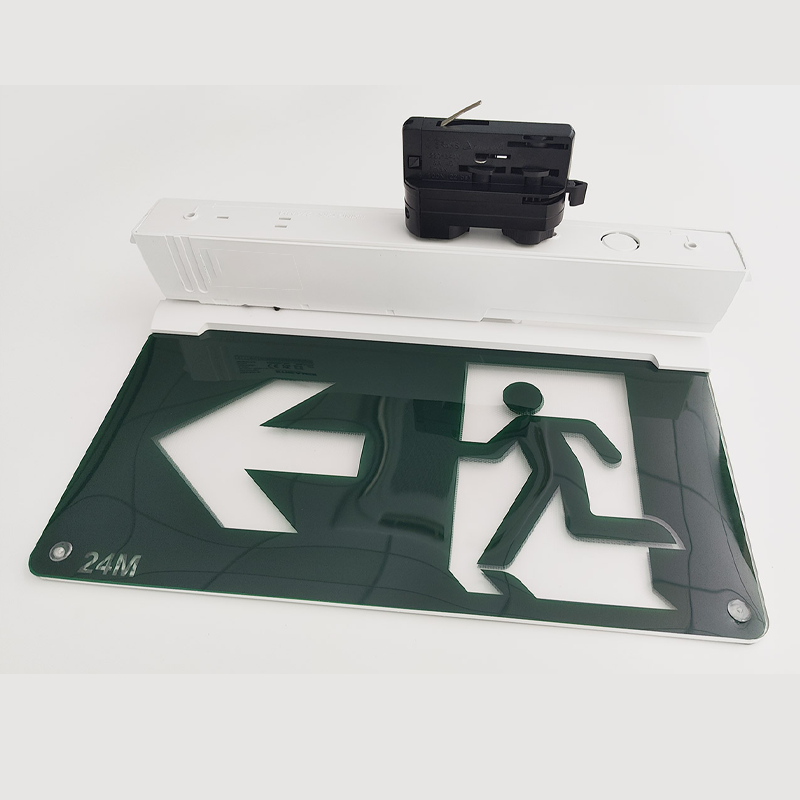

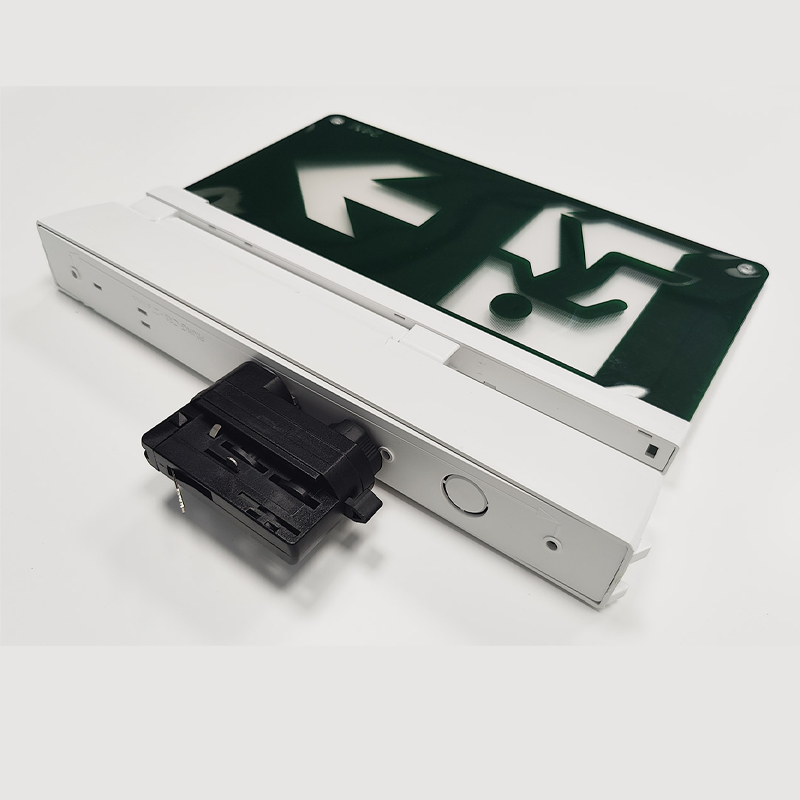

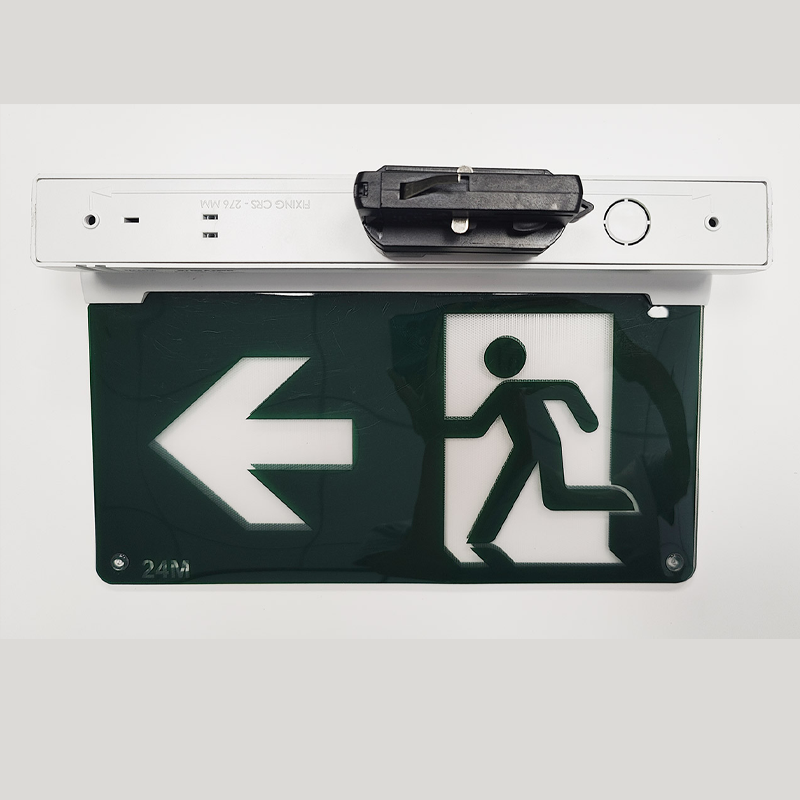

LED Emergency Exit Sign Track Mounting Description
SPACELUX offers a track-mounted LED emergency exit sign designed for commercial interiors. Providing up to 3 hours of emergency illumination, it ensures safe egress during power outages. The track mounting system enables flexible positioning and straightforward installation. Trusted by distributors worldwide, this reliable solution meets the needs of volume buyers seeking performance-driven safety products.

LED Emergency Exit Sign Track Mounting Specification
Ordering guide
·Maintained and No-maintained mode
·220-240V, 50/60 Hz input
·Manual test and Self-test function
·Complies with IEC62034 Standard
·Complies with EN60598-2-22
·LiFePO4 Battery
·180 minutes duration time
· 5-year warranty including batteries
·IP20 IK06
·CE UKCA EAC
| Model No. | Rated input | emergency power | Test Mode | Lumen output Normal/EM mode |
Battery Type | Size | Installations |
| SET4-AO1-W/B | AC220-240V 50/60Hz 3.5W max | 0.4w | Manual test | 110lm/50lm | LiFePO4 | 327x245x153mm | Track Mounted |
| SET4-A02-W/B | AC220-240V 50/60Hz 3.5W max | 0.4w | Manual test/ Self-test | 110lm/50lm | LiFePO4 | 327x245x153mm | Track Mounted |
| Product Name | Model No. | Picture | Carton size/Qty |
| Accessory for SET4 | Accessory for SET4-H1-W/B | Hoisting rope for suspending | 360x190x160mm/15pcs |
| Accessory for SET4-E1-W/B | Embedded parts for recessed-mounted | 390x330x140mm/8pcs | |
| Accessory for SET4-B1-W/B | Bracket for flag-mounted | 380x150x170mm/24pcs | |
| Accessory for SET4-T1-W/B | Track head for track-mounted | 370x240x230mm/30pcs |
Dimensions

6-in-1 Installations

Applications
✔ Office buildings
✔ Public Assembly Building
✔ Educational Institutions
✔ Healthcare Facilities
✔ Public Assembly Building
✔ Educational Institutions
✔Healthcare Facilities
✔ Transportation Hubs
✔ Government Buildings
✔ Hotel and Hospitality
