IP65 LED Emergency Bulkhead Light Product Description
Reliable Emergency Lighting for Demanding Environments

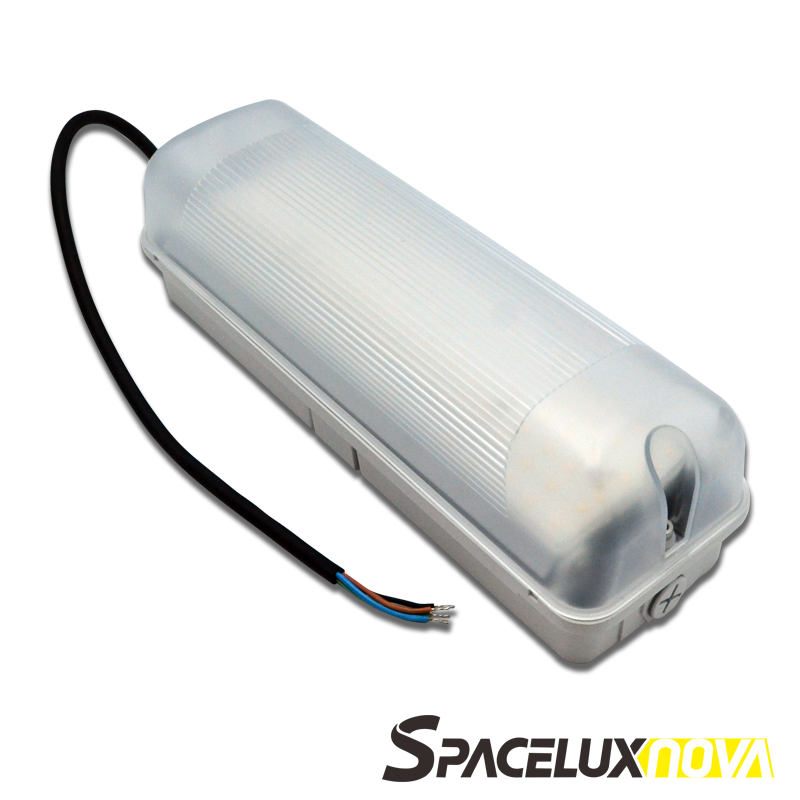

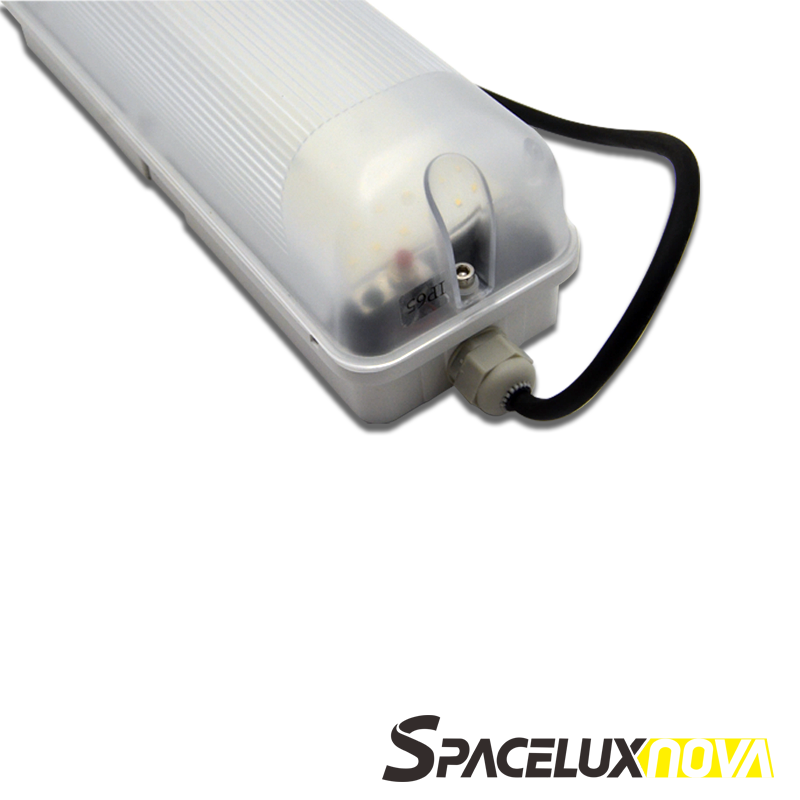

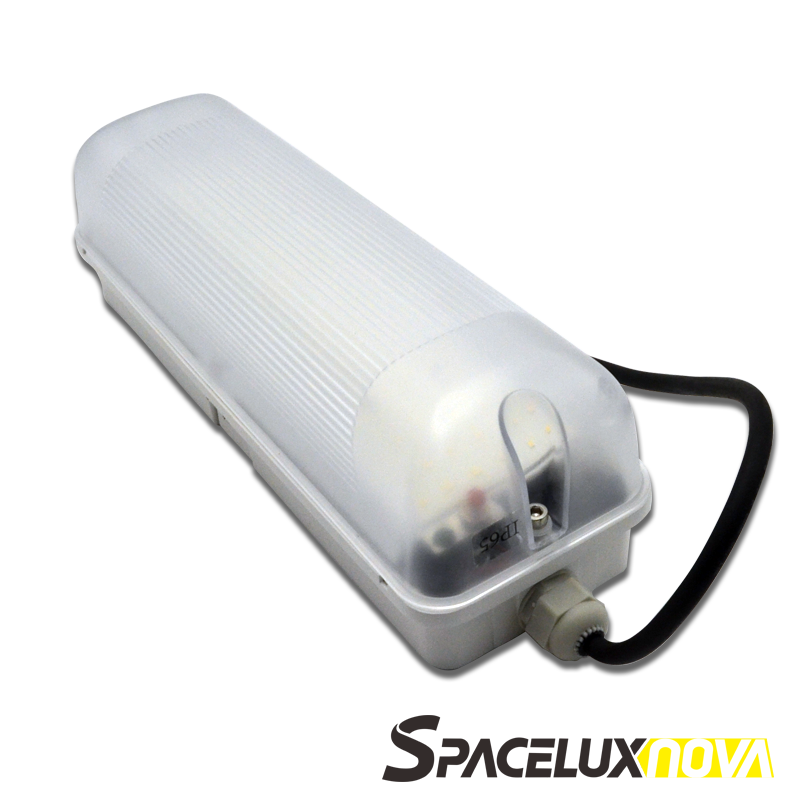

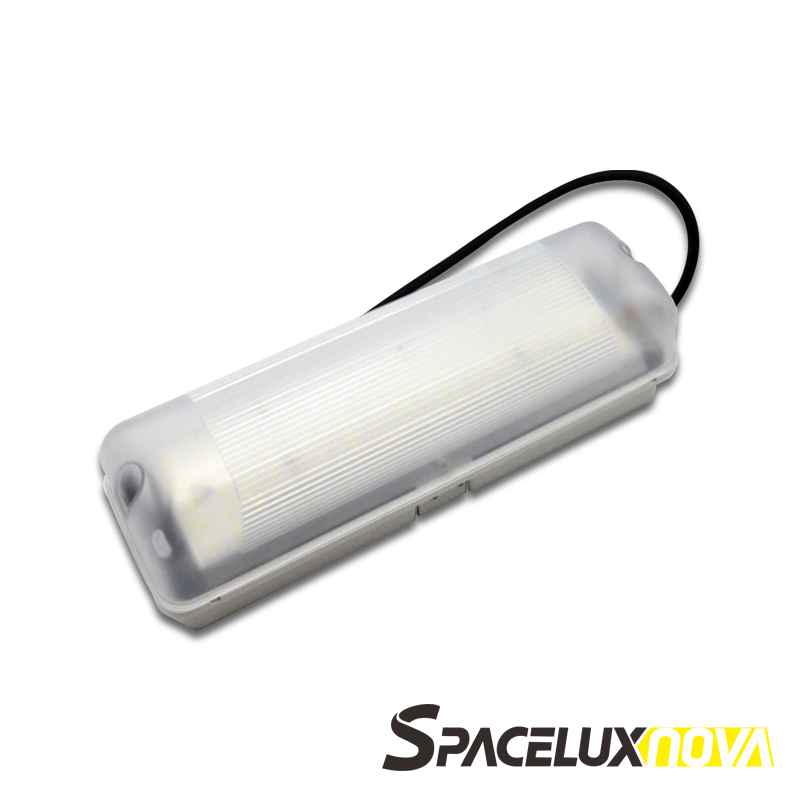

The SPACELUXNOVA SPL-BH-SET-20 is a professional-grade maintained LED emergency bulkhead designed for commercial, industrial and outdoor-sheltered applications. Its elongated, low-profile housing integrates a high-performance LED module with a long-life LiFePO₄ battery system, delivering dependable normal lighting and automatic emergency illumination when the mains supply fails.

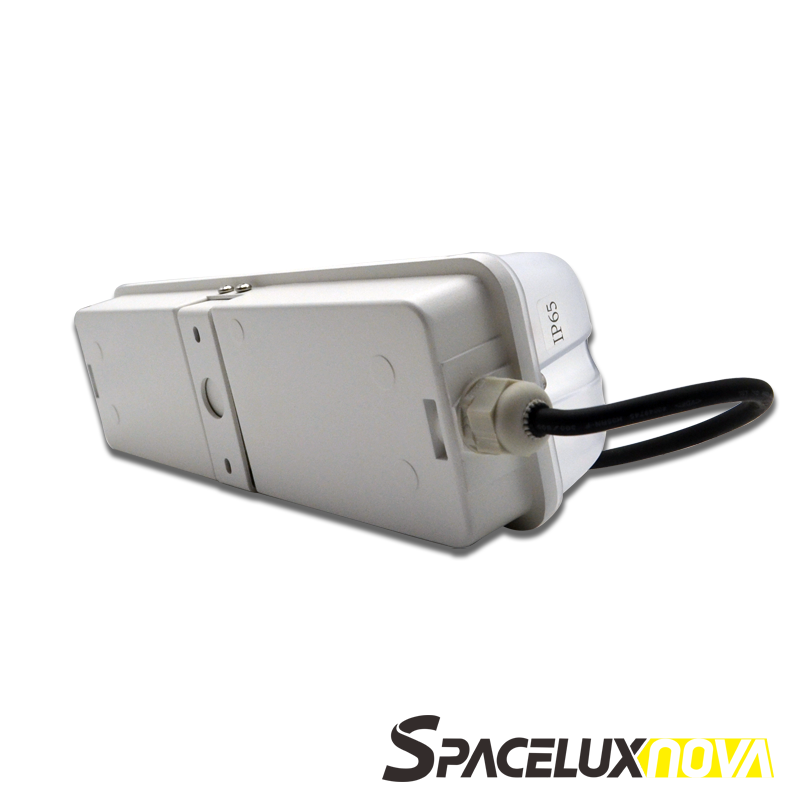

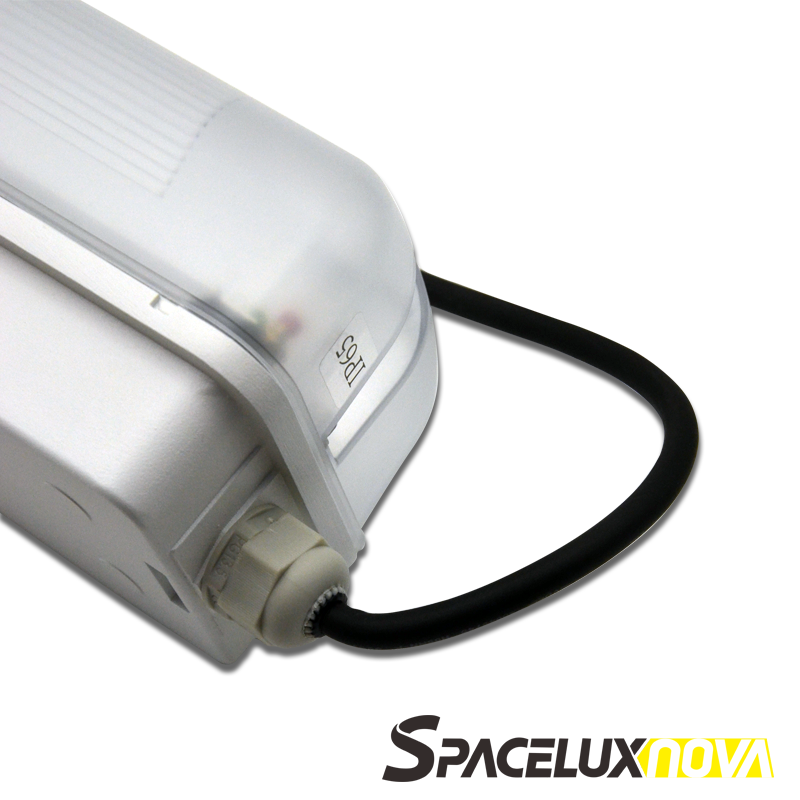

Built with a die-cast aluminium base and an 850 °C flame-retardant polycarbonate diffuser, the SPL-BH-SET-20 withstands tough conditions while maintaining excellent light distribution. The IP65 enclosure ensures protection against dust and water jets, making it suitable for warehouses, parking garages, factory corridors, stairwells, tunnels and covered outdoor walkways.
The luminaire features maintained operation, meaning it functions as a standard light during normal conditions and instantly transitions to emergency mode during power outages. The intelligent 3-stage charger continuously manages the replaceable battery, while the built-in self-test facility automatically verifies functionality and reports faults via the red LED indicator.

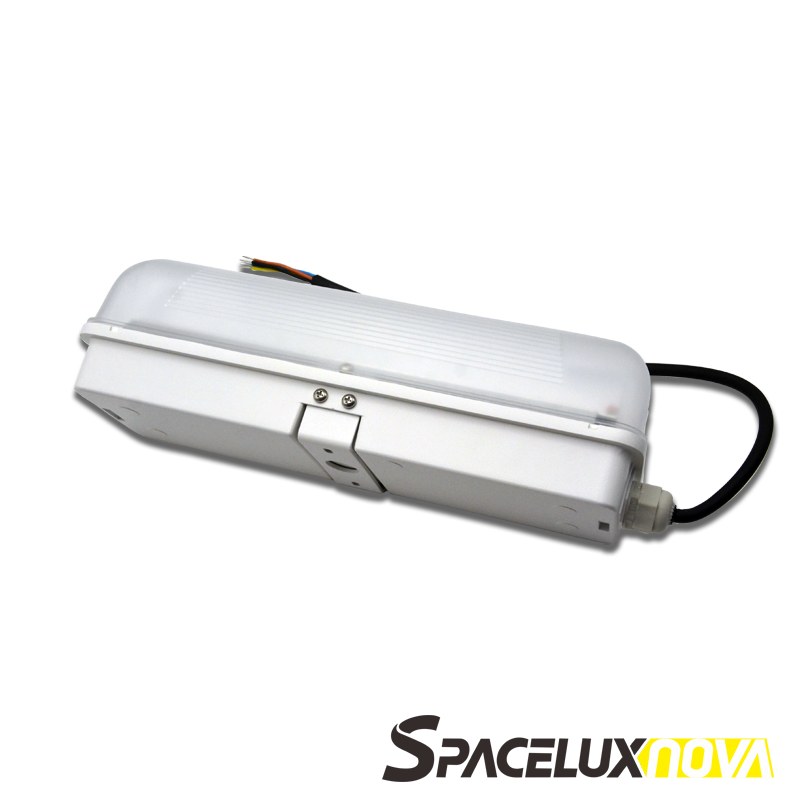

With 1800 lumens in normal mode and a minimum 3-hour emergency duration, the SPL-BH-SET-20 meets and exceeds typical escape-route lighting requirements. Installation is straightforward via surface mounting on walls or ceilings with a 4 × 1.0 mm² cable input.
Available in white or grey finishes, the SPL-BH-SET-20 combines durability, compliance and low maintenance — the ideal choice for contractors, wholesalers and facility managers seeking a cost-effective emergency lighting solution.
Applications
- Industrial corridors and production areas
- Warehouse aisles and loading bays
- Underground parking garages
- Stairwells and emergency escape routes
- Tunnels and covered walkways
- Schools, hospitals and public buildings
- Retail centres and commercial offices
- Outdoor sheltered exit points
Technical Specifications Table
SPL-BH-SET-20 Technical Specifications
| Category | Parameter | Specification |
| Item | Part Number | SPL-BH-SET-20 |
| Description | IP65 Robust Industrial AL Base LED Emergency Bulkhead | |
| Working Input | Mode of Operation | Maintained |
| Voltage & Frequency | 220–240 Vac, 50/60 Hz | |
| Installation | 4 × 1.0 mm² cable input | |
| Output | Light Source | High-performance SMD LEDs, 100,000 hours |
| Luminous Flux | 1800 lm (Normal), 300–450 lm (Emergency) | |
| Power Consumption | 20 W (Normal), 2–4 W (Emergency) | |
| Emergency Duration | > 180 minutes | |
| Controls | Charger | 16-hour intelligent 3-stage charger with battery management system |
| Emergency | Protection | Overcharge, low-voltage disconnect, overcurrent, short circuit |
| Testing Facility | Self test | |
| Indicators | Battery charger green LED; function failure through red LED | |
| Physical | Material | Die-cast aluminium base; 850 °C flame-retardant polycarbonate diffuser |
| Mounting | Surface mounted — wall or ceiling | |
| Finishing Color | White or Grey | |
| Dimensions (L × W × H) | 323 mm × 100 mm × 97 mm | |
| IP Rating | IP65 | |
| Weight | 0.93 kg | |
| Warranty | 5 years on product, 4 years on battery | |
| Environment | Operating Temperature | 0 °C to 50 °C |
| Relative Humidity | 0 to 95% | |
| Compliance | Standards | CE / UKCA / HK Safety, IEC 60598-2-1, IEC 60598-2-22, EN 55015, CAP 106B |
| Electric Class | Class I | |
| Accessories | Replaceable Battery | LiFePO₄ 6.4 V 1600 mAh (replaceable pack) |
Note: Product specifications are subject to change without prior notice due to ongoing product improvement policy and changes in industry standards.
FAQ
Q1: Is the SPL-BH-SET-20 suitable for outdoor use?
A: It is rated IP65, which protects against dust and low-pressure water jets. It is ideal for sheltered outdoor areas such as covered walkways, stairwells and canopies.
Q2: What does “maintained operation” mean?
A: The luminaire operates normally when mains power is available and automatically switches to battery-powered emergency mode during a power outage.
Q3: How long will the light stay on during an emergency?
A: The SPL-BH-SET-20 provides a minimum of 3 hours of emergency lighting after a full charge.
Q4: Can the battery be replaced?
A: Yes. The battery is a replaceable LiFePO₄ pack, allowing extended product life and lower long-term cost.
Q5: What certifications does this product carry?
A: It carries CE, UKCA and HK Safety markings and complies with IEC 60598-2-1, IEC 60598-2-22, EN 55015 and CAP 106B.
