TIR lens a powerful light control tool in LED lighting has become a defining component in modern illumination systems. By combining physics, optics, and engineering design, TIR (Total Internal Reflection) lenses enable LED fixtures to deliver precise, efficient, and versatile light distribution. Whether in architectural lighting, automotive headlights, or high-bay industrial fixtures, TIR lenses allow designers to control light like never before.
Introduction: The rise of TIR lens technology
LED lighting has revolutionized illumination by offering energy efficiency, long lifespan, and compact form factors. However, raw LEDs emit light in a wide-angle Lambertian pattern, which often wastes energy or creates unwanted glare. This is where the TIR lens, a powerful light control tool in LED lighting, enters the scene.
Unlike reflectors or simple diffusers, a TIR lens combines refraction and reflection in a single optical element, efficiently shaping LED output into usable beams with minimal loss.
What is a TIR lens?
A TIR (Total Internal Reflection) lens is an optical component made from transparent materials such as PMMA (acrylic), polycarbonate, or optical-grade silicone.
It works by:
- Refraction at the entry surface — bending LED light as it enters the lens.
- Total internal reflection along the lens sidewalls — redirecting stray light without external coatings.
- Output refraction at the exit surface — forming the desired beam shape.
This dual mechanism gives TIR lenses far higher efficiency and tighter beam control than conventional optics.

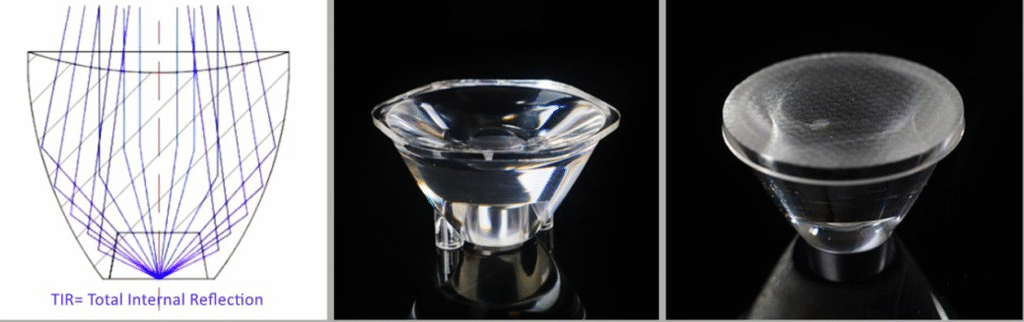

How does a TIR lens work?
Let’s break the working principle into steps:
- LED emission: LEDs emit light in nearly a 180° spread.
- Lens entry: Light enters the TIR lens through its primary aperture. Some rays are immediately refracted.
- Internal reflection: Off-axis rays strike the lens’s inner side at an angle greater than the critical angle, reflecting back inward without escape.
- Beam shaping: Reflected and refracted rays combine at the lens exit surface, forming a collimated or specifically shaped beam.
This process achieves an optical efficiency of 85–95%, compared to 70–80% for reflectors.
Why is the TIR lens a powerful light control tool in LED lighting?
Here are the 5 key benefits that make TIR lenses indispensable in LED systems:
1. High optical efficiency
TIR lenses minimize scattering and absorption losses, ensuring more LED lumens are directed into useful beams.
2. Precise beam control
From narrow spot beams (<10°) to wide floods (>60°), TIR lenses provide tight control. This is essential in architectural accent lighting or retail displays.
3. Compact integration
TIR optics are small and sit directly over LEDs, reducing fixture size while maintaining performance.
4. Design versatility
Manufacturers can design lenses with specific beam profiles — such as oval, rectangular, or asymmetric — to suit applications like street lighting or automotive use.
5. Enhanced user experience
By controlling glare and improving uniformity, TIR lenses deliver comfortable, visually appealing light.
TIR lens materials and manufacturing
The performance of the TIR lens a powerful light control tool in LED lighting, depends heavily on material choice.
Common materials:
- PMMA (Polymethyl methacrylate): High transparency, cost-effective, stable.
- Polycarbonate: Impact-resistant, good heat tolerance, used in outdoor applications.
- Optical silicone: Flexible, UV-resistant, excellent thermal performance, ideal for automotive and high-power LEDs.
Manufacturing processes:
- Injection molding: High-volume, cost-efficient for standardized designs.
- CNC machining & prototyping: For custom optics or small batches.
- Overmolding on LEDs: Increasingly common for compact fixtures.
Applications of TIR lenses
1. Architectural lighting
- Spotlights, downlights, wall washers
- Creates precise accents in museums, galleries, and retail
2. Automotive lighting
- Headlights, daytime running lights, fog lamps
- Provides sharp cut-off lines and safety-critical beam precision
3. Industrial & commercial
- High-bay/low-bay fixtures, task lights
- Maximizes efficiency in warehouses and factories
4. Street & outdoor lighting
- Roadway luminaires, floodlights
- Asymmetric beams reduce light pollution and glare
5. Consumer products
- Flashlights, bike lights, smart home lamps
- Compact optics deliver strong, focused beams
TIR lens vs reflectors: Key differences
| Feature | TIR Lens | Reflector |
|---|---|---|
| Efficiency | 85–95% | 70–80% |
| Beam control | Very precise (spot to asymmetric beams) | Limited to circular beam shapes |
| Size | Compact, close to LED | Requires larger depth |
| Glare control | High | Moderate |
| Cost | Slightly higher | Lower (simple geometry) |
For high-performance LED fixtures, TIR lenses are generally the better choice, though reflectors remain common in low-cost designs.
Designing with TIR lenses
When integrating TIR optics into LED fixtures, designers must consider:
- LED die size & position — alignment tolerance is critical for beam accuracy.
- Lens-to-LED distance — affects collimation and hotspot control.
- Thermal environment — lens materials must handle heat from LEDs.
- Fixture aesthetics — lenses may also serve as visible design elements.
Modern optical design software (e.g., Zemax, LightTools) helps simulate TIR lens performance before manufacturing.
Market trends in TIR lens technology
1. Miniaturization
With micro-LEDs and compact fixtures, thinner lenses with equal optical control are in demand.
2. Multi-lens arrays
Clusters of small TIR lenses integrated into a single optic to cover multiple LEDs — common in LED modules.
3. Smart & adaptive lighting
Advanced TIR designs enable beam tuning or dynamic control in automotive and architectural applications.
4. Sustainability
Recyclable materials and high-efficiency optics support eco-friendly lighting systems.
Advantages & limitations
Advantages:
- Exceptional light control
- High efficiency
- Wide design flexibility
- Reduced glare and light spill
- Compact fixture integration
Limitations:
- Higher manufacturing cost vs reflectors
- Sensitive to LED alignment tolerances
- Some materials degrade under UV/heat (requires proper selection)
Real-world case study: Museum lighting
A museum installed LED track lights with TIR lens a powerful light control tool in LED lighting. The results:
- 40% higher illumination efficiency compared to reflectors.
- Reduced glare improved visitor comfort.
- Narrow beams highlighted artworks precisely without light spill.
This case shows the practical impact of TIR lens technology in enhancing both efficiency and user experience.
Frequently Asked Questions (FAQ)
Q1: Why is TIR better than reflectors for LEDs?
TIR lenses are closer to the LED source and combine refraction + reflection, giving superior beam control and efficiency.
Q2: Can TIR lenses be used outdoors?
Yes, especially when made from polycarbonate or silicone, which resist UV and heat.
Q3: Do TIR lenses reduce glare?
Yes, their precise optical control minimizes stray light and improves visual comfort.
Q4: Are TIR lenses expensive?
They cost slightly more than reflectors, but higher efficiency and performance justify the price.
Q5: Can TIR lenses create asymmetric beams?
Yes, designers can shape lenses to produce rectangular or streetlight-specific distributions.
External resources
Conclusion
The TIR lens a powerful light control tool in LED lighting, represents one of the most important innovations in modern optics. By combining efficiency, precision, and design flexibility, TIR technology empowers lighting designers to create fixtures that are not only brighter and more efficient but also more comfortable and sustainable.
From museum spotlights to automotive safety beams, TIR lenses continue to shape the future of LED illumination — literally and figuratively.
