Industrial Tri-Proof Light SPL-TPC65-V5 Description
SPACELUX SPL-TPC65-V5 Industrial Tri-Proof Light features a robust PC shell and advanced thermal management for superior durability. IP66-rated for full waterproof, dustproof, and corrosion resistance, it enables tool-free installation. Fully customizable (sensors, emergency, dimming). Ideal for warehouses, parking, and harsh environments.

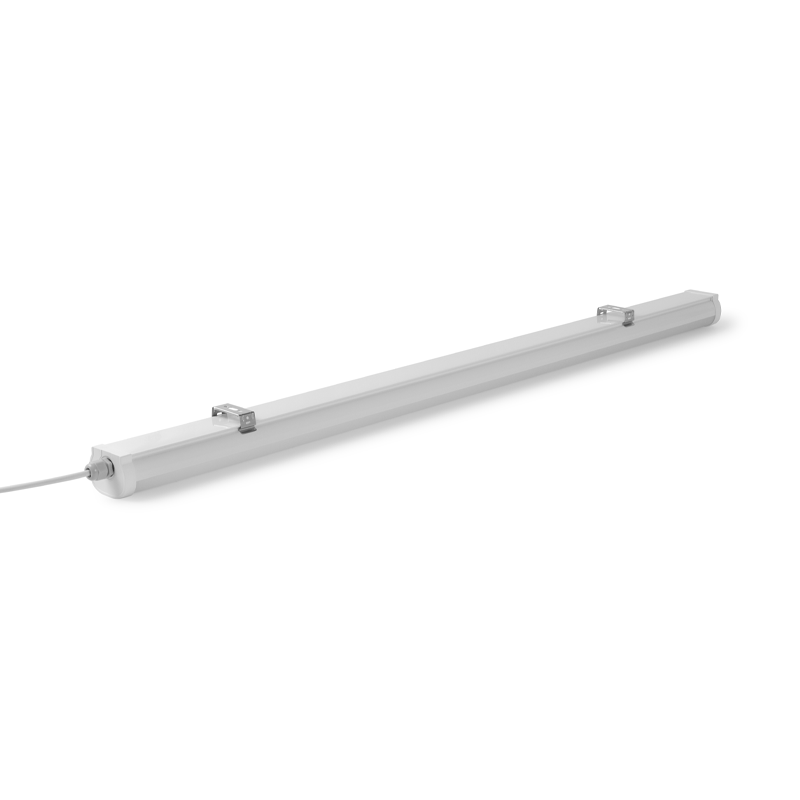

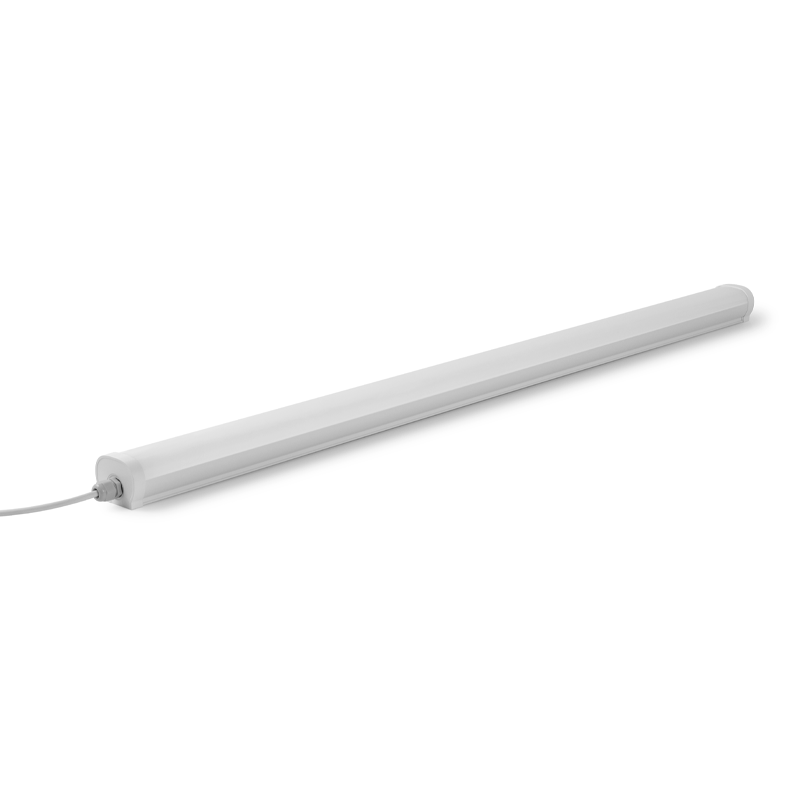

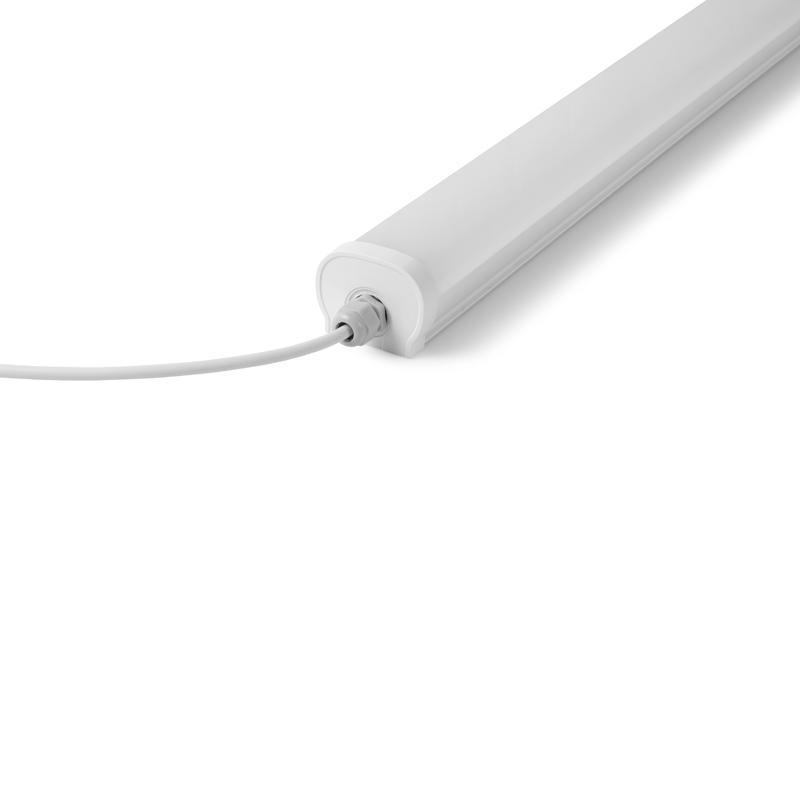

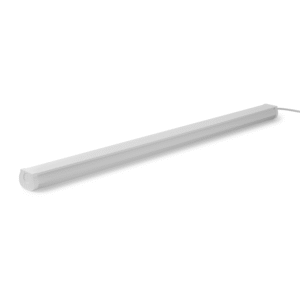

Industrial Tri-Proof Light SPL-TPC65-V5 Image

Industrial Tri-Proof Light SPL-TPC65-V5 Specification
Ordering Guide:
·Fully Customizable: Tailor the light with linkable, emergency, sensor, dimming, CCT, and mounting options for any application.

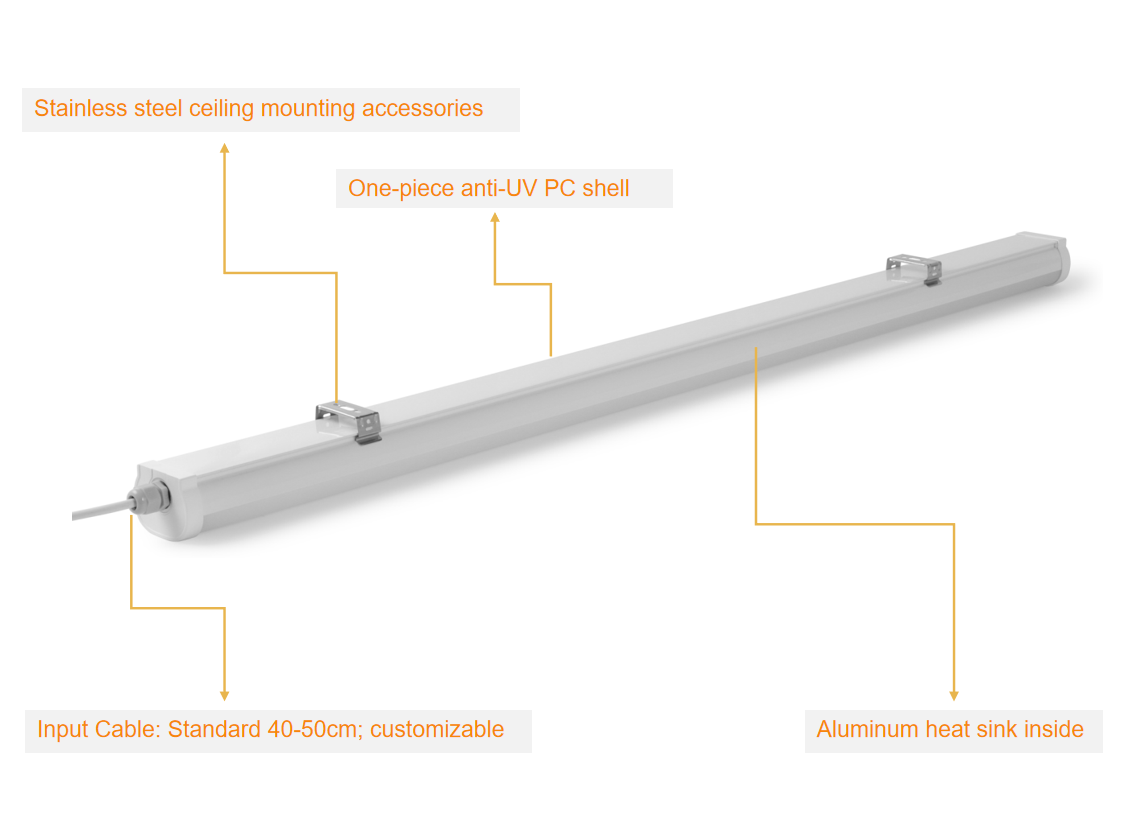

·Exceptional Durability: Features a one-piece PC shell with integrated aluminum heat sinks, IP66 waterproofing, and UV-resistant material for a long lifespan.
·Tool-Free Installation: Clip-on design enables quick and effortless setup, saving time and labor costs.
·Versatile Application: Ideal for a wide range of demanding environments like warehouses, assembly lines, and parking lots.
·TUV SAA CE CB Certification
| Parameter | Specification |
|---|---|
| Product Name | SPL-TPC65-V5 |
| Material | PC Shell with Built-in Aluminum Heat Sink |
| Power | 20W / 30W / 40W / 50W / 60W |
| Size (W*H) | 68mm * 54mm |
| Length Options | 600mm / 1200mm / 1500mm |
| Input Voltage | AC 200-240V / 50-60Hz |
| Power Factor | > 0.9 |
| Surge Protection | > 2KV |
| LED Chips | 2835 SMD |
| Luminous Efficiency | 120 LM/W, 150 LM/W |
| CCT (Correlated Color Temperature) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI (Color Rendering Index) | 80 Ra |
| Color Tolerance | SDCM < 5 |
| Beam Angle | 120° |
| IP/IK Rating | IP65, IK08, WF2 |
| Function | Emergency, DALI, 0/1-10V Dimming, Sensor |
| Operating Temperature | -25°C to +45°C |
| Warranty | 5 Years |

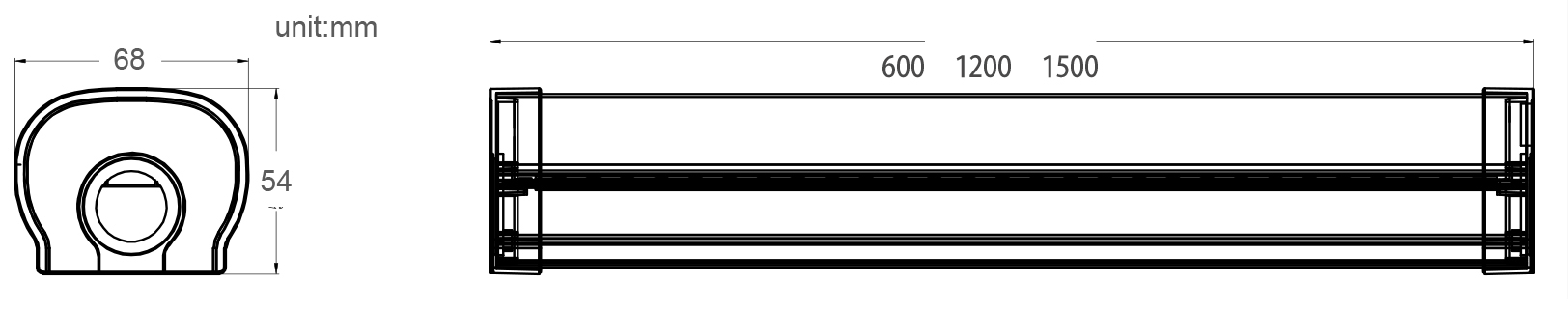

Dimension
Installation

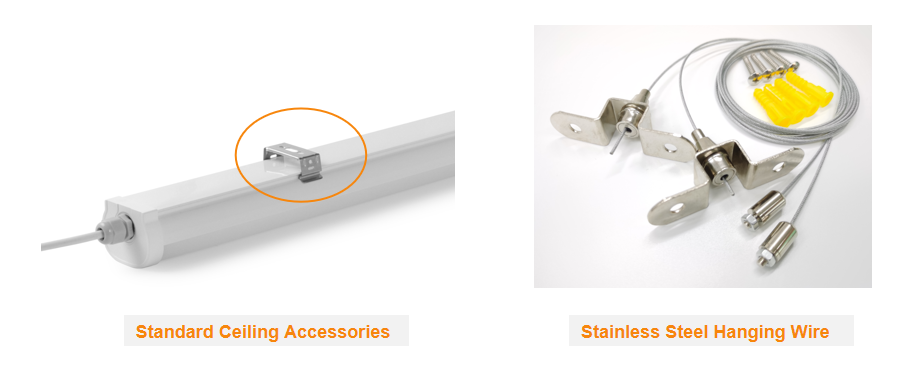

Mounting Accessories

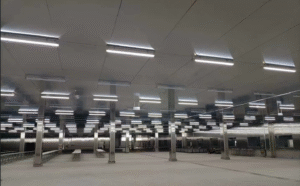

Application:
Office Building
Warehouse
